SELECT A DIAGRAM
01 - Cooktop Parts
02 - Interior Parts
03 - Control Panel Parts
04 - Chassis Parts

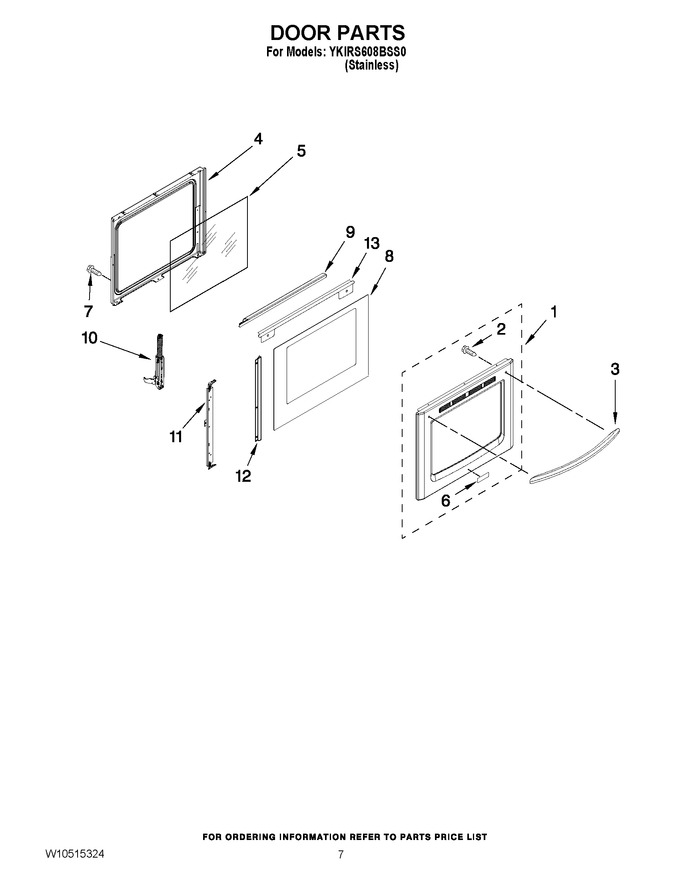

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10490829 | Panel, Outer (includes Badge) (Replaces: W10490829) |
|
$ 379.64 | |||||
| 2 | WP8533988 | Screw, Handle (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 3 | WPW10289076 | Handle (Replaces: W10289076) |
|
$ 334.61 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | WPW10243391 | Badge (Replaces: W10243391) |
|
$ 58.31 | |||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 8 | WPW10495964 | Glass, Outer (Replaces: W10495964) |
|
$ 372.84 | |||||
| 9 | W10294853 | Bracket, Glass |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge-door (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 11 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 12 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 13 | W10339814 | Trim, Vent |
|
$ 139.33 |
