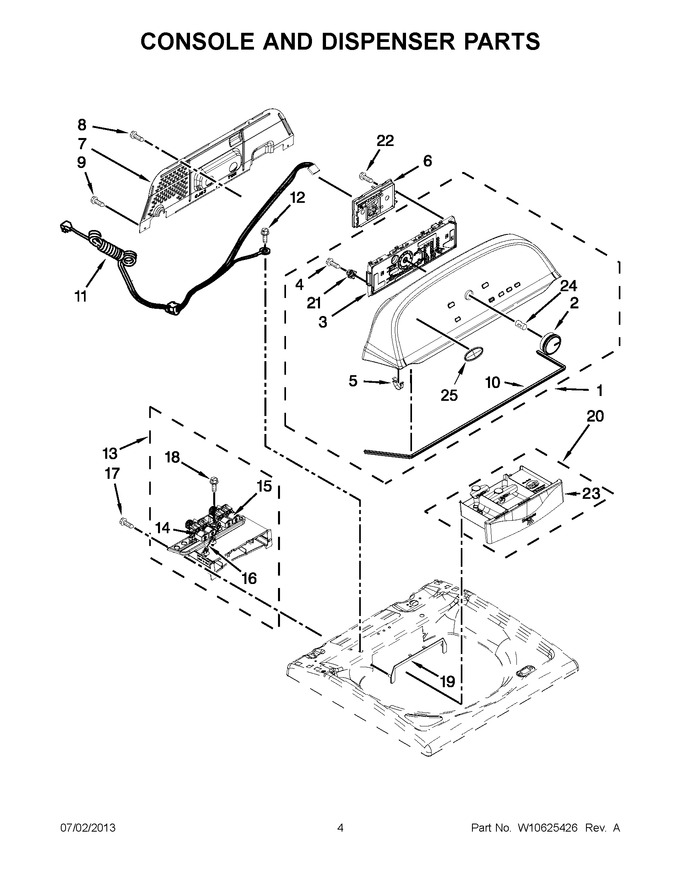

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10560118		Console (white)		Appelez-nous	-
1	W10560119		Console (chrome Shadow)				$ 377.72
2	W10579296		Assembly, Control Knob (grey)				$ 53.39
2	W10579298		Assembly, Control Knob (white)				$ 43.80
3	WPW10560210		User Interface   (Replaces: W10560210)				$ 367.35
4	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10581549		Control Unit Assembly, Machine And Motor				$ 252.66
7	W10420984		Panel, Console Rear Cover				$ 328.41
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
10	W10280079		Seal, Console		Appelez-nous	-
11	WPW10525195		Cord, Power   (Replaces: W10525195)				$ 137.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
13	WPW10601449		Housing Assembly   (Replaces: W10601449)				$ 277.82
14	W11168740		Valve, Cold Water Inlet   (Replaces: W10240949)			Immediately	$ 163.15
15	W11168743		Valve, Hot Water Inlet   (Replaces: W10240948)			Immediately	$ 112.07
16	W10601130		Harness, Valve		Appelez-nous	-
17	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.19
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.00
19	W10240946		Bezel, Dispenser				$ 23.60
20	WPW10658443		Drawer, Dispenser Assembly   (Replaces: W10240958)				$ 109.43
21	W10274524		Tensioner, Fascia		Appelez-nous	-
22	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
23	WPW10287476		Facia, Dispenser   (Replaces: W10287476)				$ 62.02
24	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
25	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 64.51

    View Diagram in Separate Window       Print Part List
