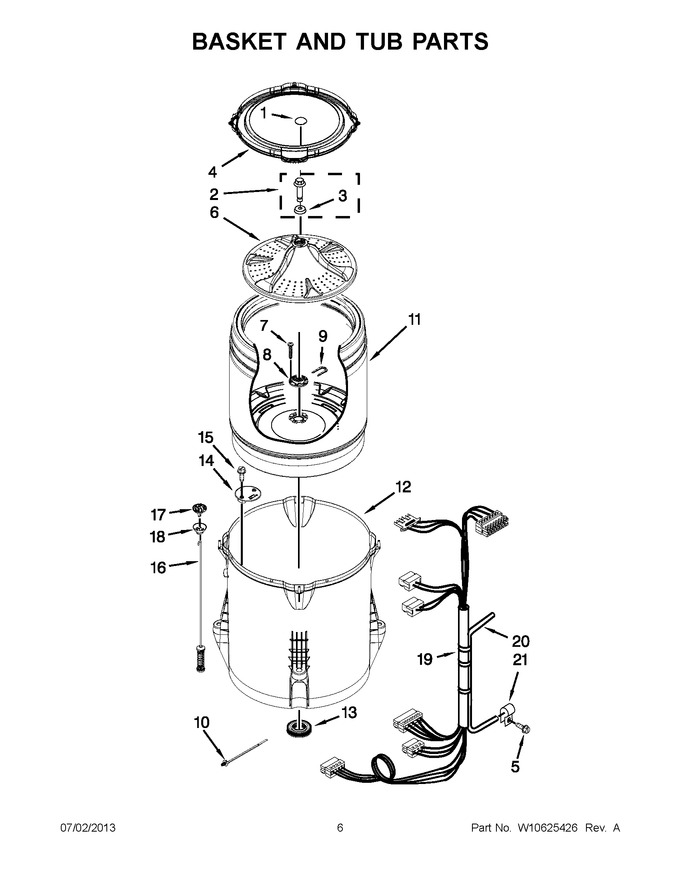

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305259		Cap, Impeller   (Replaces: W10305259)				$ 23.63
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	WPW10556325		Tub Ring   (Replaces: W10556325)			Immediately	$ 154.72
5	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
6	WPW10215115		Impeller (washplate)   (Replaces: W10215115)				$ 313.32
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10528947		Hub - Driven, Basket   (Replaces: W10396887)			Immediately	$ 44.23
9	W11385424		Retainer, Drive Block   (Replaces: W10402178)			Immediately	$ 12.97
10	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
11	W10521298		Basket Assembly				$ 486.01
12	W10324648		Tub   (Replaces: W10238301)				$ 361.85
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
15	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
16	W10780044		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10555290)			Immediately	$ 145.93
17	W10560146		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
18	W10256551		Bushing - Upper Suspension (set Of4 - Includes Suspension Balls)		Appelez-nous	-
19	W10487238		Harness, Lower		Appelez-nous	-
20	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
21	W10005430		Clamp, Cable			Immediately	$ 9.53
