SELECT A DIAGRAM

01 - Cover Sheet

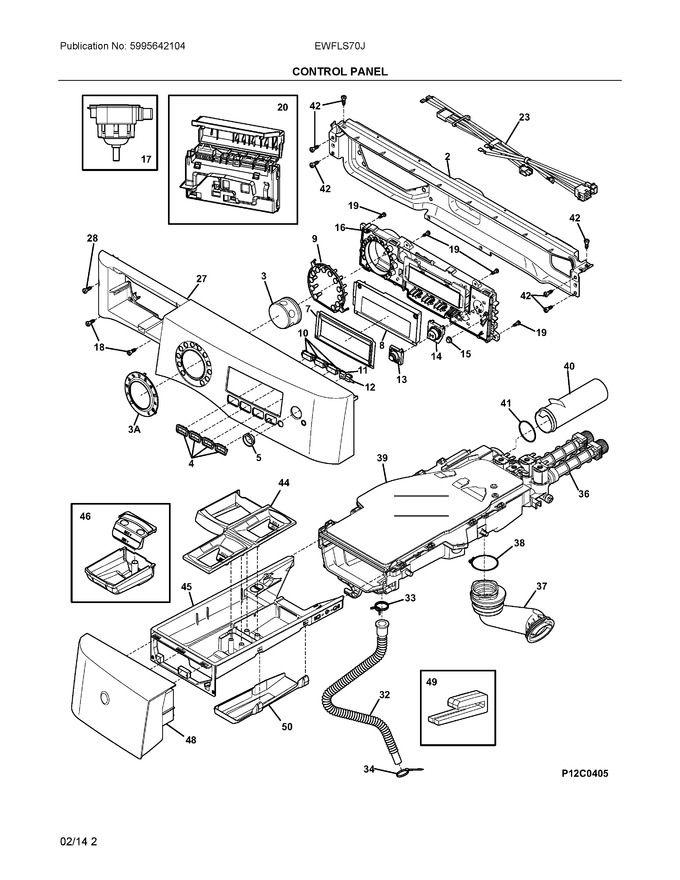

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	134766500		Knob, Retracting, Complete Asmy				$ 175.72
4	134871900		Pipe, Ring, Main Button				$ 93.71
5	134767800		Pipe, Start Button				$ 46.46
7	137007800		Trim, Ring, Lcd Display				$ 120.49
8	134767600		Lens, Lcd Display				$ 59.85
9	134768400		Pipe, Knob Light				$ 15.75
10	137007900		Cap, Main Button				$ 65.36
11	137043100		Button, Up				$ 40.95
12	137010900		Button, Down				$ 148.05
13	137021200		Button, Set				$ 59.85
14	137009900		Button, Start/pause				$ 74.03
15	137008100		Button, Off				$ 38.69
16	809020010		Control Board, Pc, W/housing   (Replaces: 134994821)				$ 396.14
17	134762010		Switch, Pressure				$ 47.38
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 33.08
20	809019910		Control, Main, Electric   (Replaces: 137317262)				$ 348.08
23	137288900		Harness, Wiring, Main				$ 560.54
27	137312425		Panel, Control Console, Silver				$ 207.32
28	131302901		Screw, 10-16 X 0.750				$ 5.51
32	134625510		Hose, Disp-to-bellows				$ 61.37
33	134737300		Clamp   (Replaces: 131306216)				$ 22.37
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 11.81
36	134637810		Valve Water, Dispenser, No Thermister			Immediately	$ 200.17
37	134625700		Hose, Disp-to-tub			Immediately	$ 80.80
38	134372400		Clamp, Tub Hose				$ 71.66
39	134964020		Housing, Dispenser, Valve, Cover				$ 282.45
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 15.27
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
44	134638310		Drawer Cover, With Graphics				$ 29.66
45	5304505336		Drawer, Dispenser   (Replaces: 134638200)			Immediately	$ 66.19
46	137143800		Cup, Dispenser, Liquid				$ 30.52
48	137316525		Drawer, Disp Asmy		Appelez-nous	-
49	137105200		Guide, Drawer Console				$ 17.64
50	134638400		Conveyor, Dispenser, Lower				$ 22.64
3A	137021400		Ring, Knob, Washer				$ 143.12
NI	137356500		Energy Guide		Appelez-nous	-
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 56.71
NIA	134178901		Screw, 8-18ab X 0.455				$ 16.54

    View Diagram in Separate Window       Print Part List
