SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

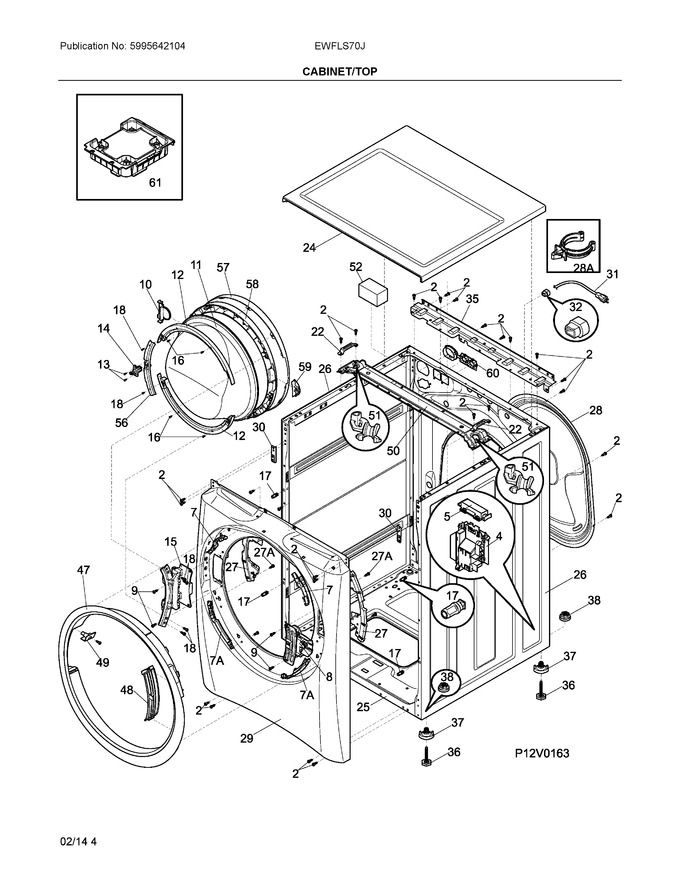

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	134618213		Control Board, Motor   (Replaces: 134618211)			Immediately	$ 344.60
5	134649700		Cover, Motor Control, Housing				$ 53.50
7	137046800		Bracket, Trim Ring Mtg, Upper				$ 20.88
8	134629900		Door Lock				$ 187.16
9	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
10	134933900		Assembly, Indicator, Complete				$ 84.79
11	5304505107		Glass, Door   (Replaces: 134958900)				$ 250.61
12	134696901		Frame, Inner Door				$ 97.20
13	131302901		Screw, 10-16 X 0.750				$ 5.51
14	134937300		Assembly, Strike, Complete				$ 65.21
15	137107500		Hinge, Door, Washer				$ 275.10
16	134788000		Screw, #8 X1.18, Pan Hd		Appelez-nous	-
17	134638700		Clip, Assembly		Appelez-nous	-
18	134790400		Screw, #10x1.25, Oval Head				$ 15.75
22	134648500		Bracket-spring, Retainer				$ 19.69
24	134638525		Panel, Work Top, Silver				$ 255.68
25	134646001		Base, Washed		Appelez-nous	-
26	134645925		Panel, Side, Silver		Appelez-nous	-
27	134879800		Protector, Door Lock, Harness		Appelez-nous	-
28	134646200		Panel, Service, Back				$ 11.63
29	134618725		Panel, Front, Silver		Appelez-nous	-
30	134858000		Bracket, Front Panel, Lh		Appelez-nous	-
31	137011400		Power Cord, Electric Svce, 120 16a				$ 69.08
32	5303209428		Bushing, Strain Relief				$ 18.90
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
36	134639100		Leveling Leg, Screw			Immediately	$ 34.65
37	134617600		Bushing, Leveling Leg				$ 37.80
38	134639200		Nut, Leveling Leg, Bushing				$ 35.44
47	5304505715		Trim, Front Panel   (Replaces: 134618800)				$ 335.76
48	134967200		Cover, Trim Ring, Washer				$ 61.53
49	134651200		Retainer, Trim Ring				$ 179.13
50	134645600		Bracket, Tub Suspension		Appelez-nous	-
51	134655800		Protector, Tub Suspension, Spring Hook, (2)				$ 4.94
52	131931202		Dampener, Vibration, Foam				$ 19.28
56	134925001		Cover, Strike				$ 65.25
57	137067900		Lens, Decorated Door   (Replaces: 134932900)				$ 229.16
58	134697200		Panel, Outer Door		Appelez-nous	-
59	134931500		Cover, Indicator Hole				$ 28.35
60	134372000		Grommet, Dispenser, Back Panel				$ 33.86
61	134652000		Damper, Mass Vibration			Immediately	$ 402.41
27A	134790600		Screw, #10-24 X 1.0", Pan Hd		Appelez-nous	-
28A	134649401		Fastener, Hose Clip, External		Appelez-nous	-
30A	134858010		Bracket, Front Panel, Rh		Appelez-nous	-
7A	137046700		Bracket, Trim Ring, Mounting				$ 26.78
NI	134876501		Clip, Hose, Drain, Rear-panel   (Replaces: 134876500)				$ 22.05
NI	134657500		Foam Pad, Front Panel		Appelez-nous	-
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 14.18
NI	134657400		Foam Pad, Work Top				$ 71.45
NIA	137380600		Screw, M5 X, 0.8 X 17.50				$ 10.45
NIA	134994500		Cover, Door Lock Plug				$ 11.97
NIA	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
NIA	134178901		Screw, 8-18ab X 0.455				$ 16.54
NIA	134657300		Foam Pad, Service Panel, Rear		Appelez-nous	-
NIB	137292400		Harness, Door Lock, Front Panel				$ 179.24
NIB	137044900		Screw, #10-16x.50, Flat Head		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
