Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580509 Tech Sheet, English Appelez-nous -
1 W10580510 Tech Sheet, French Appelez-nous -
1 W10638719 Energy Guide Appelez-nous -
1 W10596229 Use & Care Guide Appelez-nous -
1 W10532762 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10422054 Panel Front (also Includes Items 8, 14 & 15) (stainless) Special Order $ 181.58

4 WPW10422053 Panel Front (also Includes Items 8, 14 & 15) (white)   (Replaces: W10422053) Special Order $ 390.23

4 WPW10422050 Panel Front (also Includes Items 8, 14 & 15) (black)   (Replaces: W10422050) Special Order $ 412.65

5 WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

6 WP8534008 Screw, Set   (Replaces: 8534008) Special Order $ 9.37

7 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

8 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

9 WPW10350242 Bracket, Control   (Replaces: W10350242) Special Order $ 88.32

10 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

10 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

12 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

13 WPW10324630 Handle Assembly (includes Item 6) (black)   (Replaces: W10324630) Special Order $ 196.53

13 W10324627 Handle Assembly (includes Item 6) (white) Special Order $ 182.84

13 W10324628 Handle Assembly (includes Item 6) (stainless) Special Order $ 98.96

14 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

15 W10288004 Nameplate Special Order $ 52.11

16 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

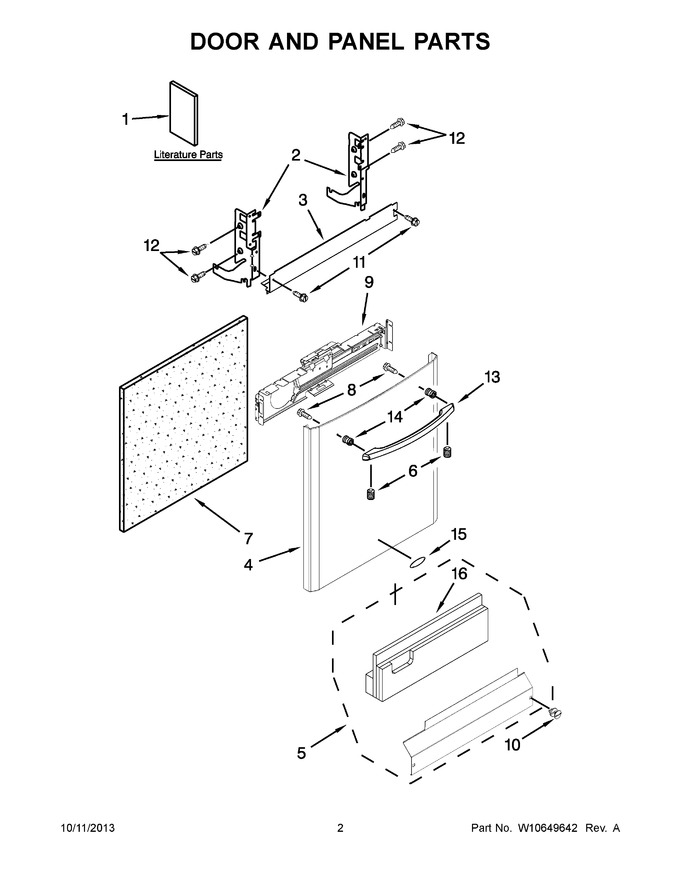

Diagram for MDB7759SAW4
