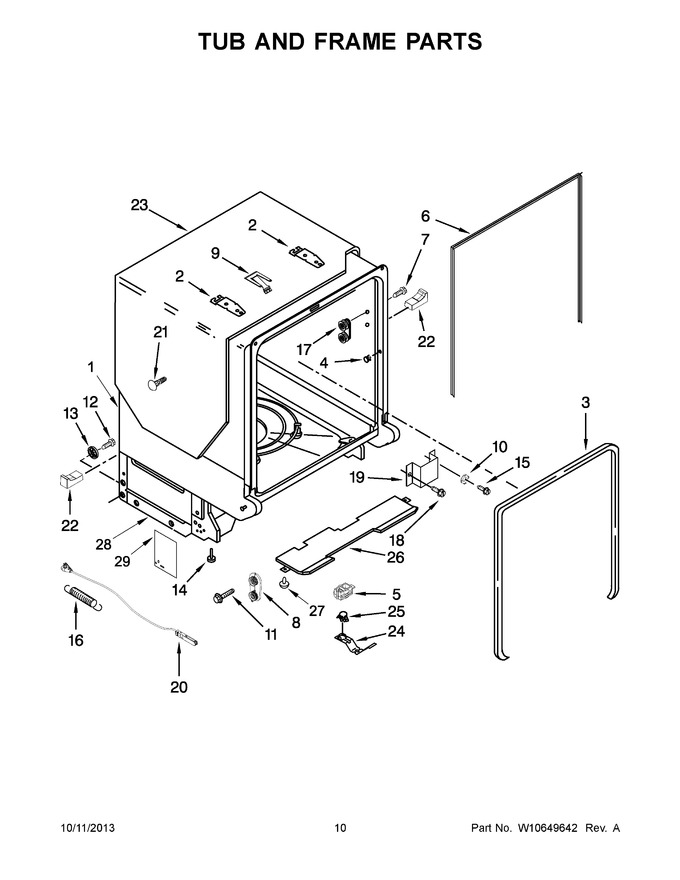

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10511198 | Tub Assembly (includes Heater Assembly) (Replaces: W10511183) |
|
$ 587.44 | |||||
| 2 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 3 | W11177741 | Gasket, Tub (Replaces: W10300924) |
|
Immediately | $ 77.43 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 15.06 | ||||
| 5 | W10292870 | Shield, Thermostat |
|
$ 24.62 | |||||
| 6 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 84.31 | ||||
| 7 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 8 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 9 | WPW10544004 | Strike, Latch (Replaces: W10544004) |
|
Immediately | $ 45.69 | ||||
| 10 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 11 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 12 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 10.82 | |||||
| 13 | WP8268977 | Wheel, Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 14 | 8193716 | Leveler, Leg (Replaces: W10304228) |
|
Immediately | $ 88.96 | ||||
| 15 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 16 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 17 | WPW10505748 | Wheel Assembly (Replaces: W10505748) |
|
Immediately | $ 9.11 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 20 | 8194001 | Cable, Door (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 21 | WP304666 | Retainer (Replaces: 304666) |
|
$ 29.45 | |||||
| 22 | W10195631 | Spacer, Tub (right Hand) |
|
$ 17.19 | |||||
| 22 | W10195630 | Spacer, Tub (left Hand) |
|
$ 17.31 | |||||
| 23 | W11086533 | Shield, Tub Sound (Replaces: 8573240) |
|
Immediately | $ 31.30 | ||||
| 24 | W10300703 | Bracket, Thermostat |
|
$ 20.49 | |||||
| 25 | WPW10195091 | Thermostat (Replaces: W10195091) |
|
Immediately | $ 36.97 | ||||
| 26 | WPW10746770 | Sound Insulation, Bottom (Replaces: W10195368) |
|
$ 44.84 | |||||
| 27 | WP3400924 | Retainer, Push In (Replaces: 3400924) |
|
Immediately | $ 45.39 | ||||
| 28 | W10398392 | Support Assembly, Rear |
|
$ 49.81 | |||||
| 29 | W10609495 | Cover, Fill Valve |
|
- |
