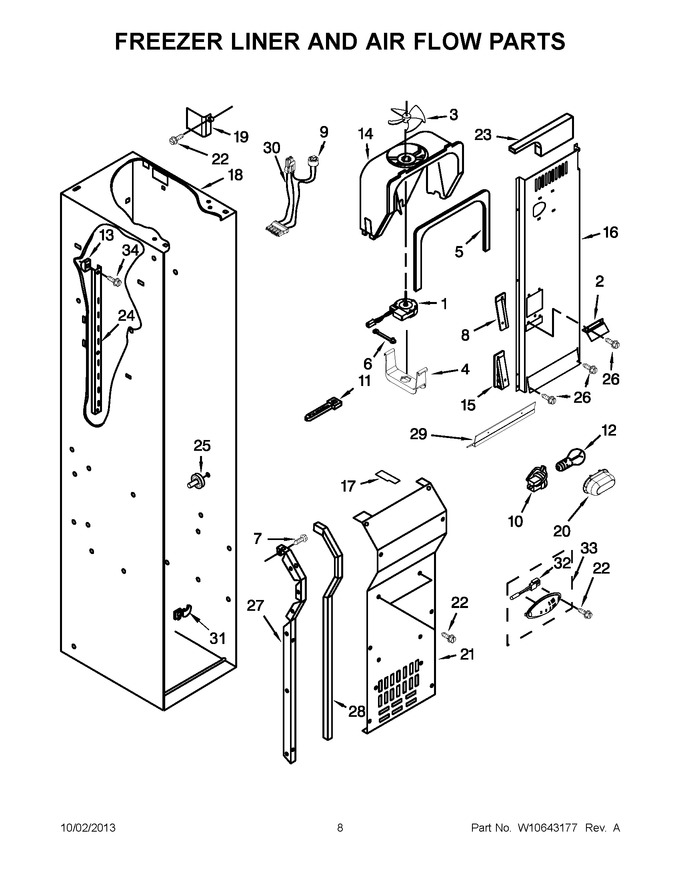

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 206.52 | ||||
| 2 | 2266801 | Air Deflector |
|
- | |||||
| 3 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 24.00 | |||||
| 5 | WP2302817 | Gasket, Cover Socket (Replaces: 2302816) |
|
$ 101.04 | |||||
| 6 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | 2259464 | Wedge, Right Air Duct |
|
$ 95.38 | |||||
| 9 | WPW10160570 | Bi-metal, Defrost (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 10 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 11 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 12 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 13 | 2259397 | Support, Ladder Screw |
|
- | |||||
| 14 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 339.43 | ||||
| 15 | 2259465 | Wedge, Left Air Duct |
|
- | |||||
| 16 | 2307776 | Air Duct |
|
- | |||||
| 17 | 2209481 | Block, Fan Scroll (right Hand) |
|
- | |||||
| 17 | 2209066 | Block, Fan Scroll ( Left Hand) |
|
- | |||||
| 18 | N/P | Liner (not Serviced) |
|
- | |||||
| 19 | 2259025 | Cover, Air Outlet |
|
$ 92.36 | |||||
| 20 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 21 | W10427999 | Cover, Evaporator |
|
- | |||||
| 22 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 23 | 2309282 | Deflector, Air Duct |
|
- | |||||
| 24 | WP2259032 | Ladder Shelf (Replaces: 2259032) |
|
$ 81.02 | |||||
| 25 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 26 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 27 | 2221107 | Evaporator, Cover Rail (left Hand) |
|
- | |||||
| 27 | 2259355 | Evaporator, Cover Rail (right Hand) |
|
$ 126.54 | |||||
| 28 | 2220904 | Gasket, Evaporator Cover |
|
$ 23.55 | |||||
| 29 | 2302849 | Support, Air Duct |
|
- | |||||
| 30 | W11676572 | Harness, Bi-metal Wire (Replaces: W10482187) |
|
$ 131.19 | |||||
| 31 | 1112260 | Support, Evaporator |
|
- | |||||
| 32 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 33 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 11.38 | |||||
| 34 | 2006475 | Screw (white) |
|
- |
