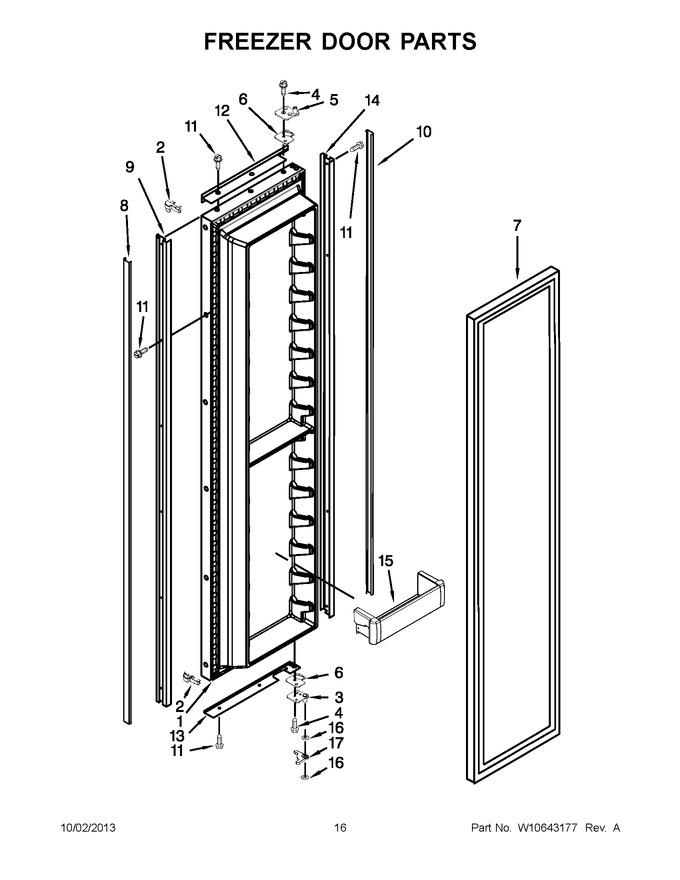

09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193485		Freezer Door Panel		Appelez-nous	-
2	2207457		Trim, Corner				$ 57.12
3	2252294		Assembly, Bottom Hinge		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W10484480		Hinge Assembly, Top				$ 64.04
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
8	2314003S		Cover, Trim (handle Side) (aluminum)				$ 174.63
9	2309497S		Trim, Door (handle Side) (aluminum)				$ 323.02
10	2259448S		Trim, Screw Cover (hinge Side) (aluminum)				$ 179.50
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
12	2309488S		Trim, Top Door		Appelez-nous	-
13	2309494S		Trim, Bottom Door		Appelez-nous	-
14	2309498S		Trim, Door (hinge Side) (aluminum)				$ 324.38
15	W10323601		Bin, Door				$ 92.19
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
