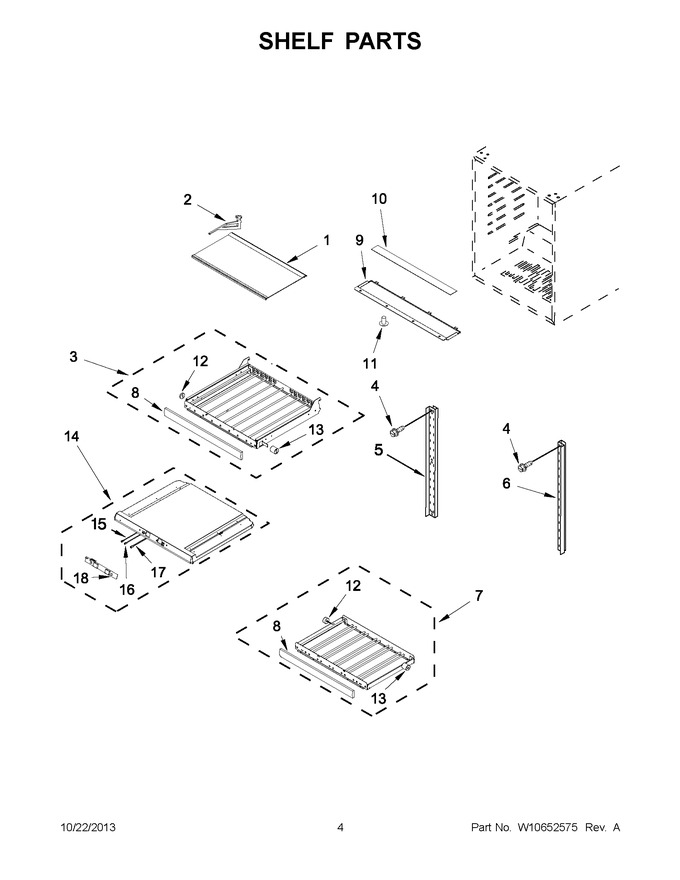

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10622800		Glass Shelf, Top   (Replaces: W10622800)				$ 371.46
2	W10622802		Bracket, Shelf				$ 111.20
3	W10624153		Wine Rack Assembly, Upper				$ 395.04
4	W10319189		Screw				$ 71.14
5	W10652611		Ladder, Left Hand		Appelez-nous	-
6	W10652610		Ladder, Right Hand		Appelez-nous	-
7	W10624154		Wine Rack Assembly, Lower				$ 324.95
8	W10624160		Trim, With Adhesive		Appelez-nous	-
9	W10622774		Lens, Light				$ 33.12
10	W10622775		Led Light Bar				$ 38.81
11	W10622794		Screw				$ 17.14
12	W10624157		Support, Bumper 13mm				$ 19.26
13	W10624158		Support, Bumper 12mm				$ 22.86
14	W10624147		Temperature Separator				$ 392.69
15	W10238024		Transformer Cable		Appelez-nous	-
16	W10238025		Sensor Assembly, Top				$ 131.24
17	W10238026		Sensor Assembly				$ 138.18
18	W10624162		Pcb Display Board				$ 363.33
NI	N/P		Optional Parts Not Illustrated		Appelez-nous	-
NI	W10624165		Service Kit, Upper Wine Rack		Appelez-nous	-
NI	W10624166		Service Kit, Lower Wine Rack		Appelez-nous	-
