SELECT A DIAGRAM

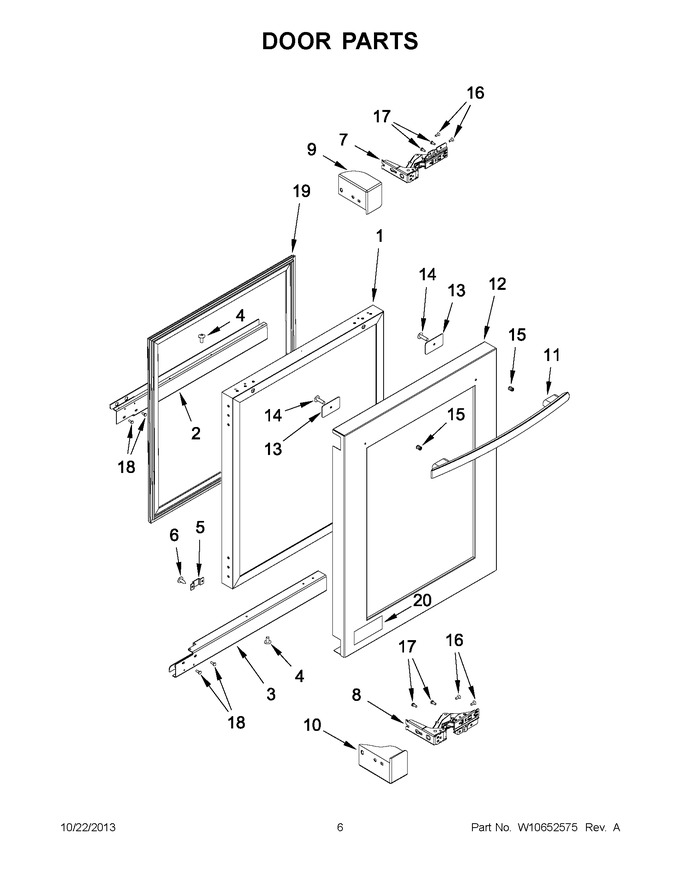

01 - Cover Sheet


02 - Cabinet Parts


03 - Shelf Parts


04 - Door Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10624186		Glass Door Assembly, Left Hand		Appelez-nous	-
4	W10319187		Screw				$ 73.51
5	W10622808		Switch Plate				$ 27.27
6	W10319184		Screw		Appelez-nous	-
7	W10622810		Assembly, Hinge (top Mount)				$ 287.06
8	W10622809		Assembly, Hinge (bottom Mount)				$ 285.30
9	W10622812		Cover, Hinge (upper)				$ 126.03
10	W10622811		Cover, Hinge (lower)				$ 126.03
11	W10622019		Handle			Immediately	$ 360.90
12	W10624187		Door Skin, Stainless Left Hand				$ 297.44
13	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
14	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
15	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 19.33
16	W10780349		Screw   (Replaces: W10622816)				$ 52.00
17	W10319189		Screw				$ 71.14
18	W10622817		Screw				$ 25.67
19	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 271.52
20	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
NI	N/P		Optional Parts Not Illustrated		Appelez-nous	-
NI	8171420		Cleaner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
