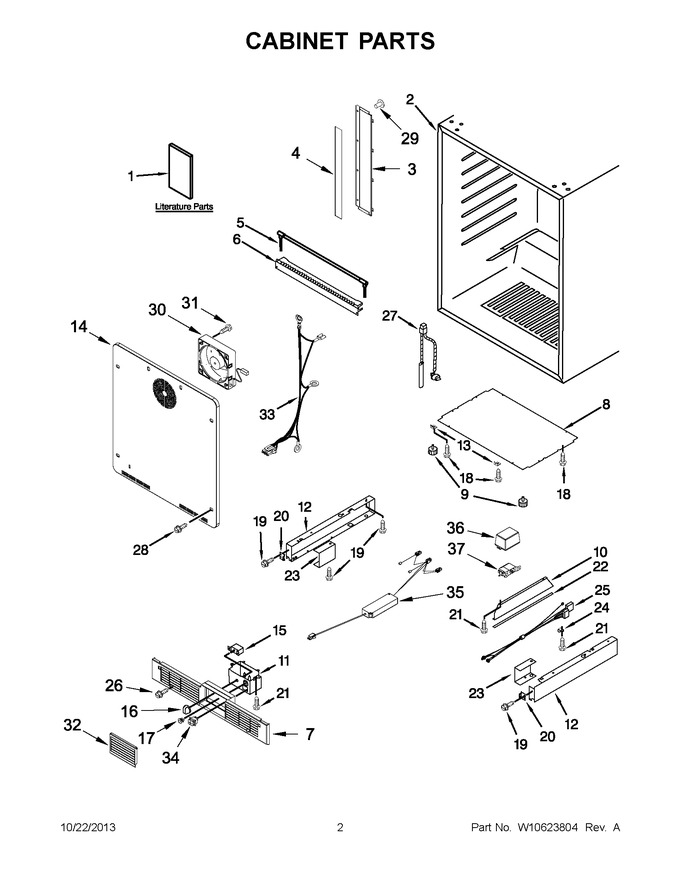

02 - Cabinet Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300272 | Use & Care Guide |
|
- | |||||
| 1 | W10624112 | Wiring Diagram |
|
- | |||||
| 1 | W10624116 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | W10624137 | Cover, Light |
|
- | |||||
| 4 | W10622775 | Led Light Bar |
|
$ 38.81 | |||||
| 5 | W10622776 | Heater, Defrost |
|
$ 292.07 | |||||
| 6 | 4344747 | Heat Shield |
|
$ 78.49 | |||||
| 7 | W10622777 | Grille |
|
$ 112.96 | |||||
| 8 | 4344762 | Plate, Bottom |
|
- | |||||
| 9 | W11106296 | Leg. Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 10 | W10204638 | Brace, Support |
|
- | |||||
| 11 | W10624141 | Control Box |
|
- | |||||
| 12 | W10621525 | Frame, Side (left Side) (Replaces: W10622781) |
|
$ 105.89 | |||||
| 12 | W10621526 | Frame, Side (right Side) (Replaces: W10622785) |
|
$ 103.92 | |||||
| 13 | W10622786 | Bracket, Grille |
|
- | |||||
| 14 | W10624146 | Fan Cover |
|
- | |||||
| 15 | W10624145 | Thermostat |
|
$ 153.80 | |||||
| 16 | WP3402573 | Knob, Thermostat (Replaces: 4344768) |
|
$ 106.51 | |||||
| 17 | WP4344767 | Switch, Plunger (Replaces: 4344767) |
|
$ 59.62 | |||||
| 18 | 4344826 | Screw, Grille |
|
$ 16.70 | |||||
| 19 | W10243104 | Screw |
|
- | |||||
| 20 | W10622791 | Clip, Grille |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal, Brace |
|
$ 101.83 | |||||
| 23 | 4344821 | Frame, Support (right Hand) |
|
- | |||||
| 23 | 4344820 | Frame, Support (left Hand) |
|
- | |||||
| 24 | W10270482 | Cable Clamp |
|
- | |||||
| 25 | W10622792 | Harness, Wire |
|
$ 102.63 | |||||
| 26 | W10319184 | Screw |
|
- | |||||
| 27 | W10244414 | Bi-metal |
|
$ 111.91 | |||||
| 28 | 4344793 | Screw |
|
- | |||||
| 29 | W10622794 | Screw |
|
$ 17.14 | |||||
| 30 | W10854409 | Motor & Fan (Replaces: W10204942) |
|
Immediately | $ 313.91 | ||||
| 31 | W10205061 | Screw |
|
- | |||||
| 32 | W10622795 | Cover, Grille |
|
- | |||||
| 33 | W10622796 | Harness, Evaporator |
|
$ 44.89 | |||||
| 34 | 4344858 | Switch, Light |
|
$ 110.66 | |||||
| 35 | W10646523 | Power Supply Assembly |
|
$ 334.64 | |||||
| 36 | W10646526 | Ac Relay |
|
$ 247.33 | |||||
| 37 | W10646528 | Dc Relay |
|
$ 272.45 |
