01 - Cover Sheet
02 - Cabinet Parts

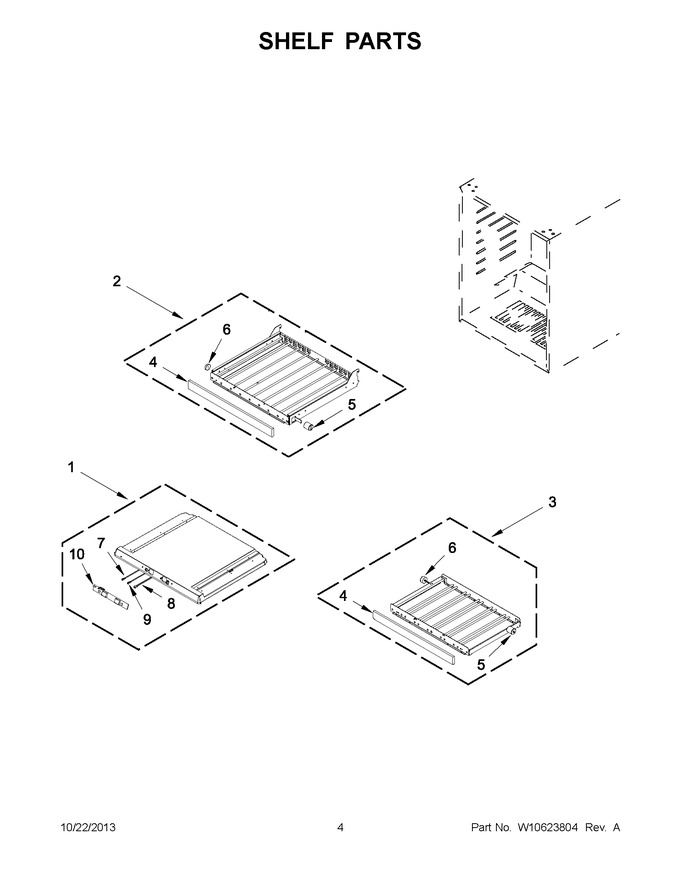

03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624147 | Temperature Separator |
|
$ 392.69 | |||||
| 2 | W10624153 | Wine Rack Assembly, Upper |
|
$ 395.04 | |||||
| 3 | W10624154 | Wine Rack Assembly, Lower |
|
$ 324.95 | |||||
| 4 | W10624160 | Trim, With Adhesive |
|
- | |||||
| 5 | W10624157 | Support, Bumper 13mm |
|
$ 19.26 | |||||
| 6 | W10624158 | Support, Bumper 12mm |
|
$ 22.86 | |||||
| 7 | W10238024 | Transformer Cable |
|
- | |||||
| 8 | W10238026 | Sensor Assembly |
|
$ 138.18 | |||||
| 9 | W10238025 | Sensor Assembly, Top |
|
$ 131.24 | |||||
| 10 | W10624162 | Pcb Display Board |
|
$ 363.33 | |||||
| NI | N/P | Optional Parts Not Illustrated |
|
- | |||||
| NI | 8171420 | Cleaner |
|
- | |||||
| NI | W10624165 | Service Kit, Upper Wine Rack |
|
- | |||||
| NI | W10624166 | Service Kit, Lower Wine Rack |
|
- |
