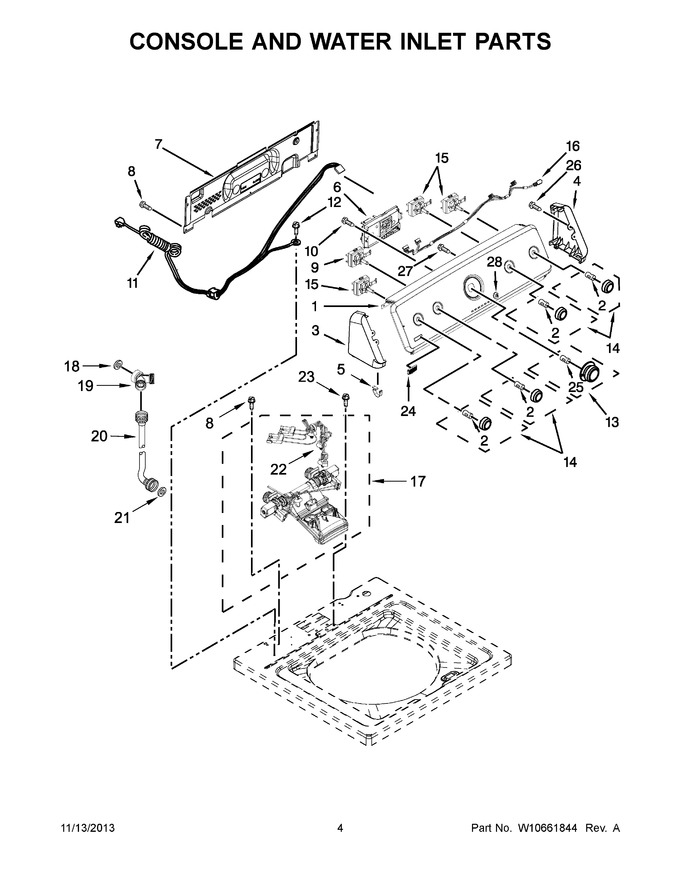

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365086 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 4 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11087256 | Control Unit Assembly, Machine & Motor (Replaces: W10544156) |
|
- | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 9 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10422755 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10317454 | Assembly, Timer Knob (grey) (Replaces: W10317454) |
|
$ 63.47 | |||||
| 14 | WPW10317455 | Assembly, Control Knob (grey) (Replaces: W10317455) |
|
$ 63.33 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 16 | W10291177 | Harness, Upper (temperature) |
|
$ 152.67 | |||||
| 17 | WPW10683676 | Inlet Assembly, Water (Replaces: W10486030) |
|
$ 207.59 | |||||
| 18 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 19 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194211) |
|
Immediately | $ 24.09 | ||||
| 19 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 20 | WPW10269488 | Connector, Hose -``y`` (Replaces: W10269488) |
|
$ 89.64 | |||||
| 21 | WP3357450 | Washer, Hose Adapter (Replaces: 3357450) |
|
$ 11.56 | |||||
| 22 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | W10323734 | Assembly, Badge |
|
$ 63.95 | |||||
| 25 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 26 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 27 | 3400073 | Screw |
|
- | |||||
| 28 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 28.04 | |||||
| NI | WPW10475423 | 10a Cord Adapter (type B) (Replaces: W10475423) |
|
$ 21.75 | |||||
| NI | N/P | (parts Not Shown) |
|
- | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 80.90 |
