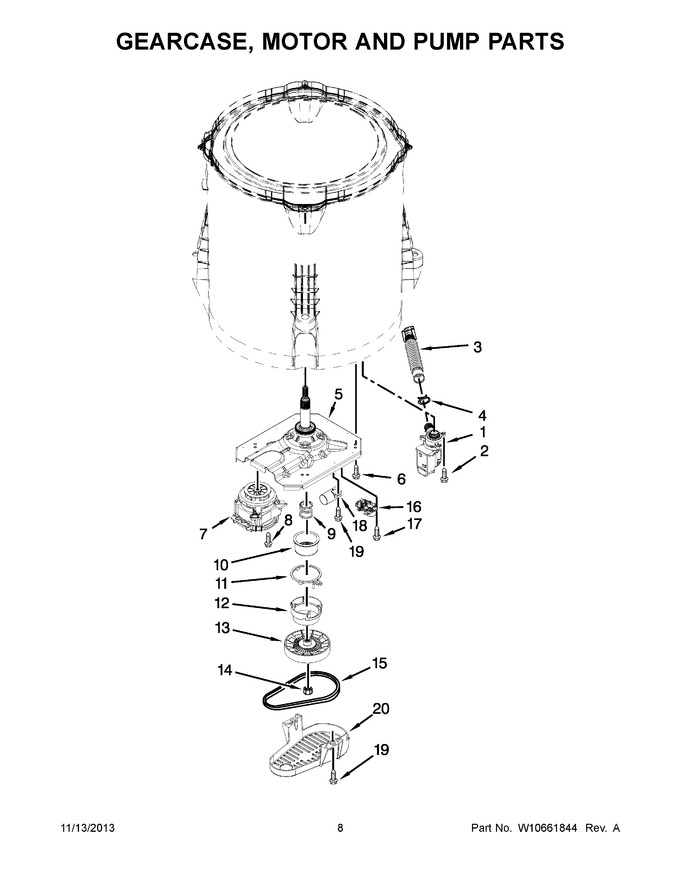

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10297344 | Pump Assembly, Drain (Replaces: W10297344) |
|
Immediately | $ 159.34 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10215091) |
|
Immediately | $ 35.78 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10469846) |
|
Immediately | $ 299.80 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 7 | W11039789 | Motor, Drive (Replaces: W10416663) |
|
$ 338.23 | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 9 | W10721967 | Spring, Splutch (Replaces: W10326374) |
|
Immediately | $ 55.68 | ||||
| 10 | W10721967 | Slider, Splutch (Replaces: W10006352) |
|
Immediately | $ 55.68 | ||||
| 11 | W10721967 | Cam Ring, Splutch (Replaces: W10006353) |
|
Immediately | $ 55.68 | ||||
| 12 | W10721967 | Cam, Splutch (Replaces: W10006354) |
|
Immediately | $ 55.68 | ||||
| 13 | W10721967 | Pulley (Replaces: W10536113) |
|
Immediately | $ 55.68 | ||||
| 14 | W10759923 | Nut, Pulley (Replaces: W10604214) |
|
$ 8.35 | |||||
| 15 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 38.66 | ||||
| 16 | W11336577 | Actuator, Shift (Replaces: W10249623) |
|
$ 178.11 | |||||
| 17 | W11596033 | Screw (Replaces: 9741052) |
|
$ 14.23 | |||||
| 18 | W11168653 | Capacitor, Motor Run (Replaces: W10456704) |
|
$ 244.70 | |||||
| 19 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 20 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 49.78 |
