SELECT A DIAGRAM

01 - Cover Sheet

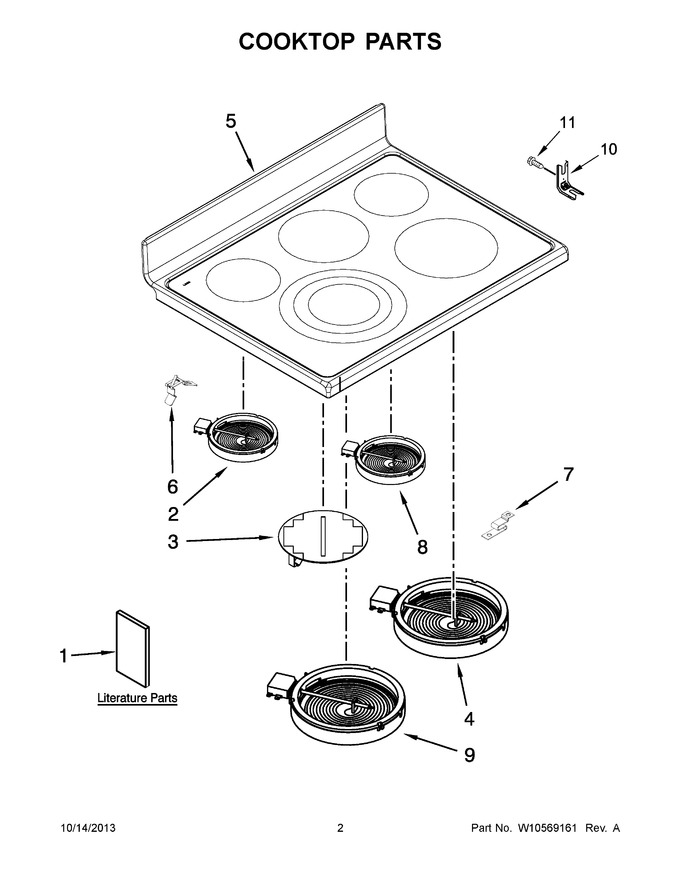

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430931		Use & Care Guide		Appelez-nous	-
1	W10340587		Tech Sheet (english)		Appelez-nous	-
1	W10340588		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10430958		Instructions, Installation		Appelez-nous	-
2	W11171119		Element (1200w) (left Rear)   (Replaces: 8273994)			Immediately	$ 225.62
3	WP9762851		Element, Warm Zone (120v) (center)   (Replaces: 9762851)			Immediately	$ 290.36
4	WPW10251107		Element (3200w) (right Front)   (Replaces: W10251107)				$ 357.60
5	W10336329		Cooktop (stainless)   (Replaces: W10260155)			Immediately	$ 681.85
6	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
7	WPW10260946		Support, Element   (Replaces: W10260946)				$ 135.10
8	WPW10270604		Element (700w) (right Rear)   (Replaces: W10270604)				$ 223.48
9	W11101459		Element, Triple (2700w) (left Front)   (Replaces: W10259005)			Immediately	$ 215.72
10	WP3801F656-51		Bracket, Anti Tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
11	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72

    View Diagram in Separate Window       Print Part List
