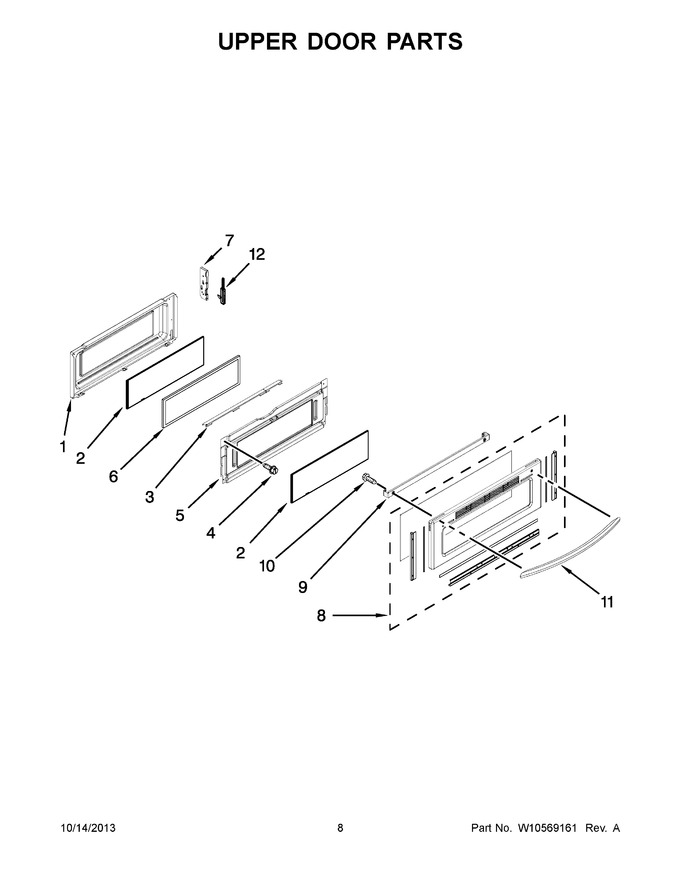

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11103615		Lining, Door   (Replaces: W10485721)				$ 305.61
2	W11132120		Glass, Inner   (Replaces: W10272707)				$ 179.33
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 171.93
4	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
5	W10485723		Retainer, Insulation				$ 252.42
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 99.18
7	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
8	W10326119		Assembly, Door (stainless)		Appelez-nous	-
9	W10645182		Bracket, Handle   (Replaces: W10296658)				$ 41.73
10	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
11	WPW10289076		Handle, Door (stainless)   (Replaces: W10289076)				$ 334.61
12	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 55.76
12	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 59.59
