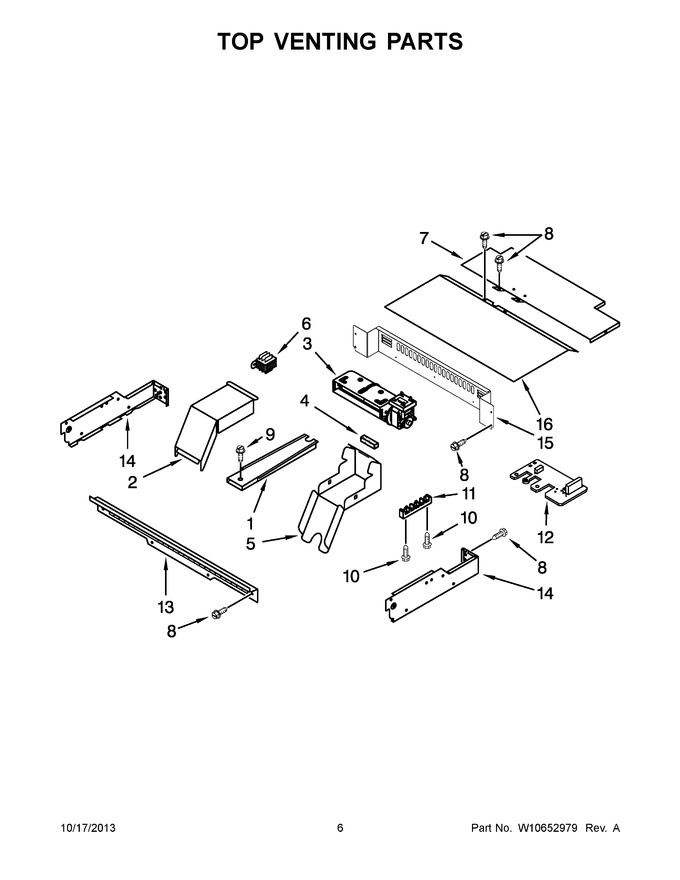

04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 2 | 4455178 | Elbow, Top Vent |
|
$ 15.52 | |||||
| 3 | W10810687 | Blower, 60mm (Replaces: 9759320) |
|
Immediately | $ 343.34 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 5 | 4455177 | Elbow, Vent Bottom |
|
$ 11.39 | |||||
| 6 | 9760587 | Transformer, Control |
|
$ 112.69 | |||||
| 7 | WP4452367 | Cover, Top Front (Replaces: 4452367) |
|
$ 79.95 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 10 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 11 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 12 | WP4451985 | Suppressor (Replaces: 4451985) |
|
$ 173.47 | |||||
| 13 | 8303497 | Vent,control Panel |
|
$ 155.15 | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 78.41 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | 8303100 | Back, Control |
|
- | |||||
| 16 | 4450551 | Cover, Top Rear |
|
- |
