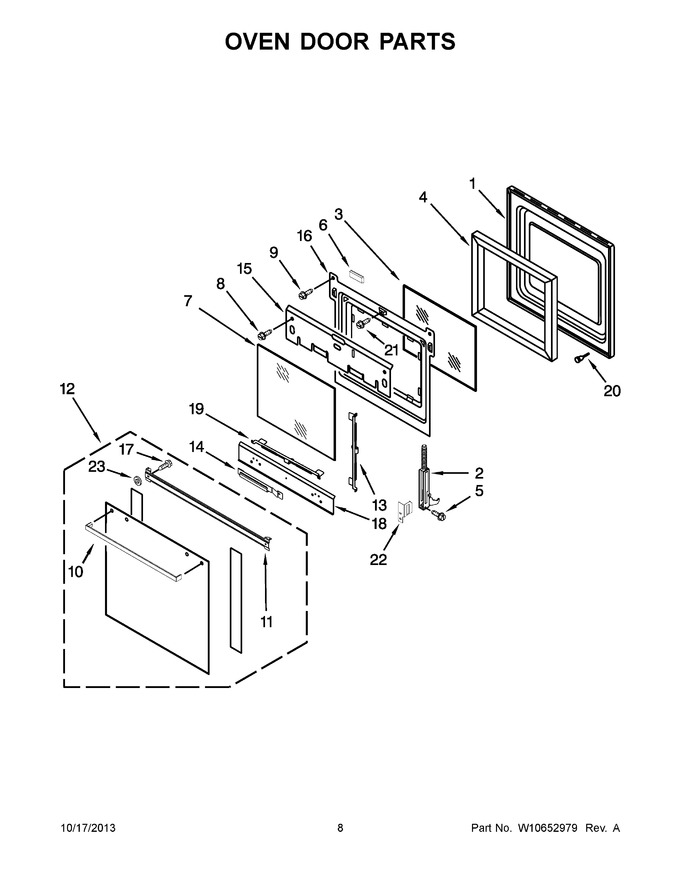

05 - Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 9759413)				$ 370.46
2	WP9760578		Hinge, Door (left)   (Replaces: 9760578)			Immediately	$ 115.46
2	WP9760577		Hinge, Door (right)   (Replaces: 9760577)			Immediately	$ 116.54
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	9759635		Spacer, Door Glass				$ 36.09
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
10	W10308271		Handle, Door				$ 95.03
11	W10159515		Bracket, Door Handle		Appelez-nous	-
12	W10308380		Assembly, Door		Appelez-nous	-
13	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
14	9759230		Bracket, Central				$ 36.30
15	4457104		Shield, Heat Top				$ 39.22
16	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
17	WP74006515		Screw   (Replaces: 7101P544-60)				$ 8.84
18	4457114		Shield, Heat Bottom				$ 217.79
19	W10308272		Bracket-bottom (stainless)		Appelez-nous	-
19	W10308245		Bracket-bottom (black)				$ 73.95
20	4448520		Bumper, Door				$ 22.25
21	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
22	W10137044		Cover,hinge (right)				$ 38.61
22	W10137043		Cover,hinge (left)				$ 39.01
23	W10169568		Washer		Appelez-nous	-
