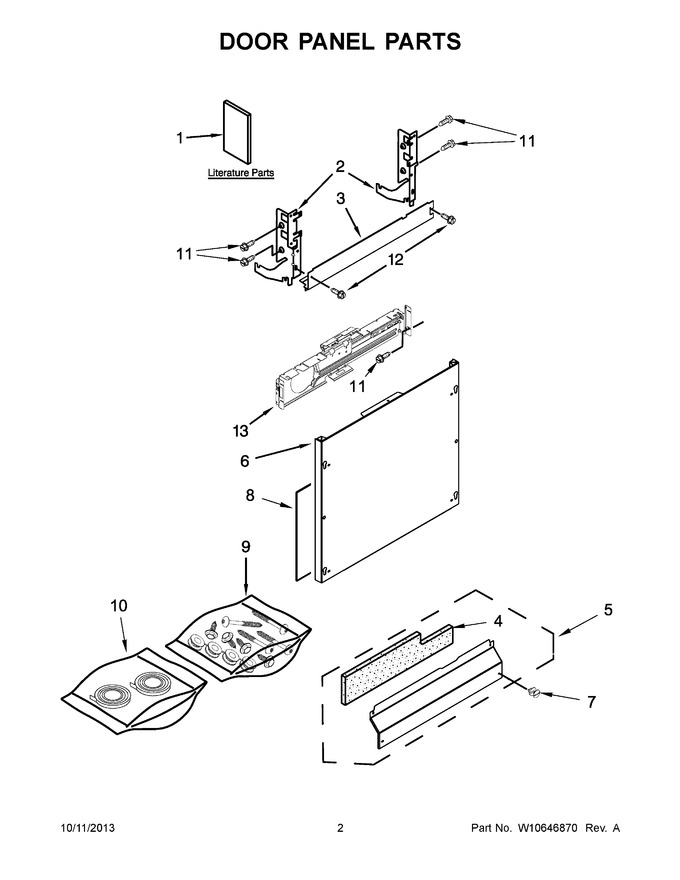

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10195005		Template, 6`` Custom Panel		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10638768		Energy Guide		Appelez-nous	-
1	W10596233		Use & Care Guide		Appelez-nous	-
1	W10455257		Tech Sheet, English		Appelez-nous	-
1	W10455258		Tech Sheet, French		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	W11113792		Panel Front (ready)   (Replaces: W10292632)			Immediately	$ 373.42
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	W10234565		Insulation Front Panel				$ 69.57
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 75.05
10	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 29.80
11	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
