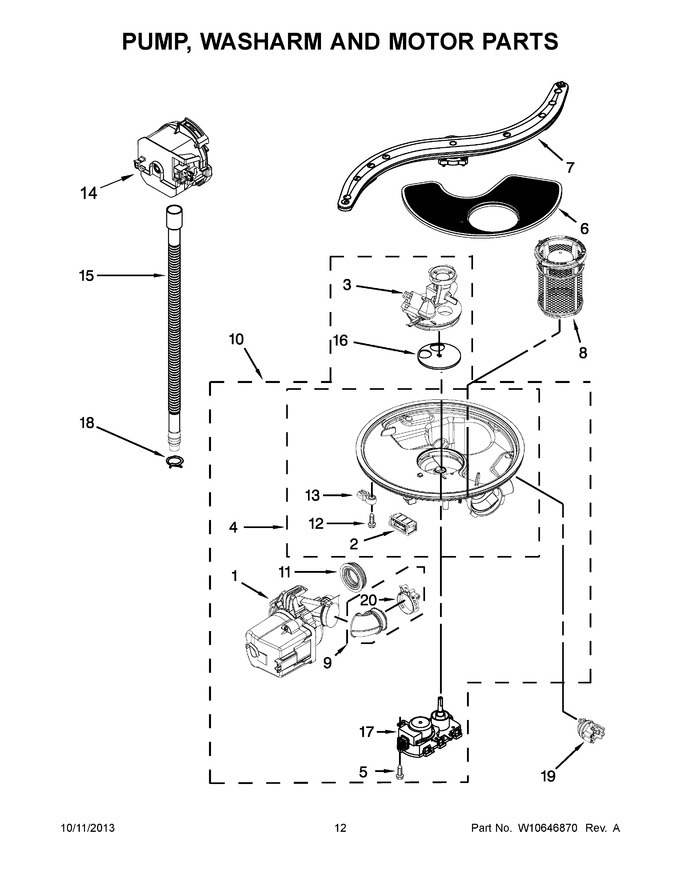

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10894668 | Motor (also Order Items 9 & 11) (Replaces: W10314568) |
|
Immediately | $ 271.59 | ||||
| 2 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 3 | WPW10455272 | Cover, Outlet (Replaces: W10455272) |
|
Immediately | $ 47.68 | ||||
| 4 | WPW10455268 | Sump With Seal (also Order Items 9 & 11) (Replaces: W10455268) |
|
Immediately | $ 179.66 | ||||
| 5 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 6 | WPW10463906 | Screen (Replaces: W10195360) |
|
Immediately | $ 36.35 | ||||
| 7 | WPW10491331 | Wash Arm Assembly (Replaces: W10333330) |
|
Immediately | $ 55.64 | ||||
| 8 | W10872845 | Filter Cup Assembly (Replaces: W10465374) |
|
Immediately | $ 55.08 | ||||
| 9 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 | ||||
| 10 | WPW10455261 | Motor & Sump Assembly (Replaces: W10455261) |
|
Immediately | $ 323.93 | ||||
| 11 | WPW10538166 | Grommet (Replaces: W10538166) |
|
Immediately | $ 44.37 | ||||
| 12 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 13 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 14 | WPW10531320 | Motor, Drain (Replaces: W10531320) |
|
Immediately | $ 97.77 | ||||
| 15 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 16 | WPW10476221 | Disc, Diverter (Replaces: W10476221) |
|
Immediately | $ 27.41 | ||||
| 17 | W10537869 | Motor, Diverter (Replaces: W10476222) |
|
Immediately | $ 101.62 | ||||
| 18 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 19 | WPW10705575 | Optical Water Indicator (Replaces: W10253602) |
|
Immediately | $ 43.81 | ||||
| 20 | W10789434 | Clamp, Hose (Replaces: W10169167) |
|
Immediately | $ 14.40 |
