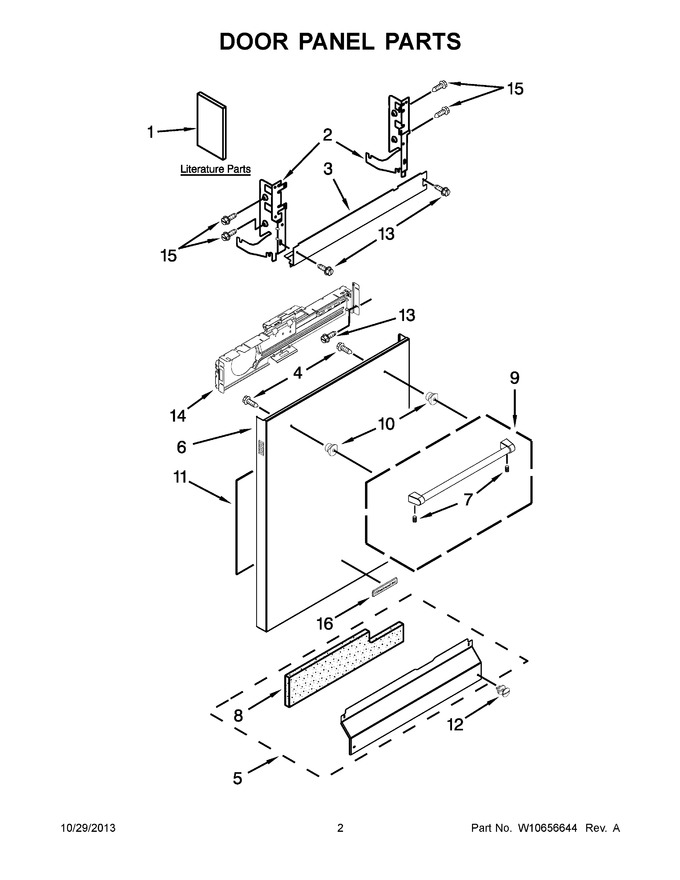

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10455258		Tech Sheet, French		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10638768		Energy Guide		Appelez-nous	-
1	W10596233		Use & Care Guide		Appelez-nous	-
1	W10455257		Tech Sheet, English		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WPW10195874		Panel Front (stainless)   (Replaces: W10195874)				$ 396.59
7	W10320946		Set Screw		Appelez-nous	-
8	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
9	W10529221		Handle Assembly (stainless)		Appelez-nous	-
10	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
11	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
12	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
13	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
14	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	WPW10320959		Nameplate (stainless)   (Replaces: W10320959)				$ 102.43
