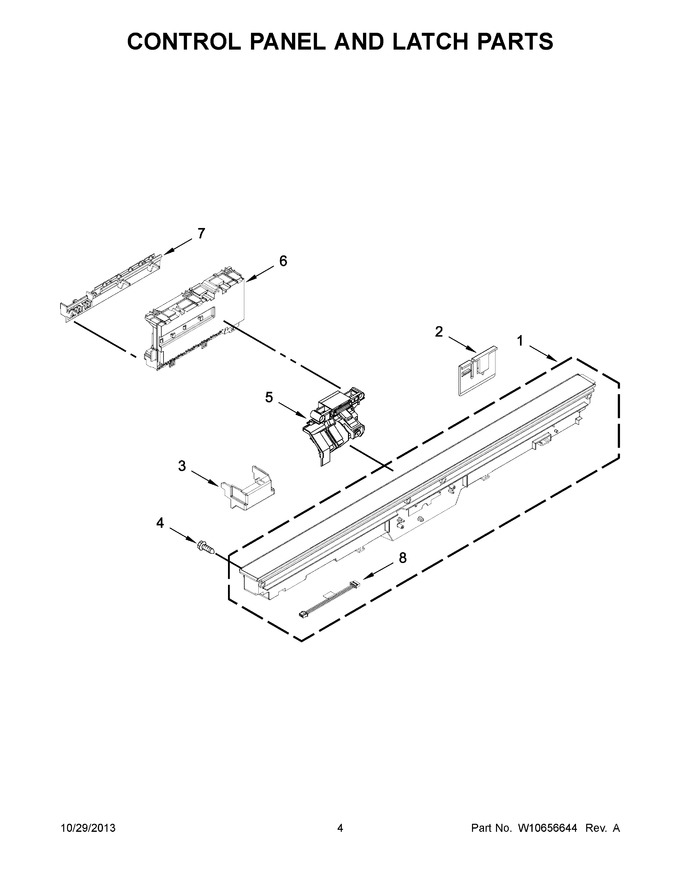

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10481116 | Console Assembly (apollo Grey) (Replaces: W10481116) |
|
$ 368.37 | |||||
| 2 | W11256107 | Clip. Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 8.56 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 34.18 | ||||
| 6 | W10866118 | Control, Electronic (Replaces: W10481091) |
|
Immediately | $ 326.32 | ||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 21.65 | |||||
| 8 | W10528492 | Jumper, 4 Wire |
|
$ 30.11 |
