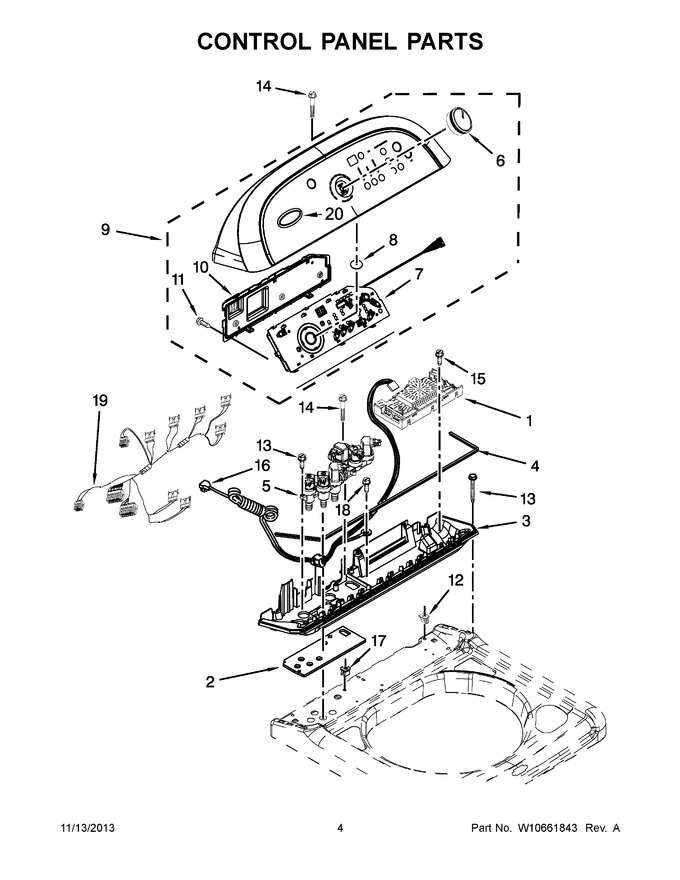

03 - Control Panel Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10611616		Assembly, Control Unit (machine And Motor)		Appelez-nous	-
2	W10130502		Gasket, Valve Tray				$ 19.43
3	W10309229		Tray Assembly (gray)		Appelez-nous	-
4	8546616		Gasket, Console/tray				$ 60.11
5	W10853723		Valve, Log   (Replaces: W10342320)			Immediately	$ 121.66
6	WPW10567081		Assembly, Control Knob (black)   (Replaces: W10567081)				$ 62.21
7	WPW10563774		User Interface   (Replaces: W10563774)				$ 264.73
8	8572039		Seal, User Interface		Appelez-nous	-
9	W10550350		Assembly, Console (red)		Appelez-nous	-
10	8564265		Cover, Rear (user Interface)				$ 142.60
11	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
12	W10022060		Nut, Push In		Appelez-nous	-
13	WPW10052600		Screw   (Replaces: W10052600)				$ 7.30
14	8565324		Screw				$ 14.05
15	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
16	WPW10547372		Cord, Power   (Replaces: W10547372)				$ 92.15
17	98460		Nut, Push-in				$ 12.07
18	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 7.30
19	WPW10404419		Upper Harness   (Replaces: W10404419)				$ 77.97
20	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 67.74
