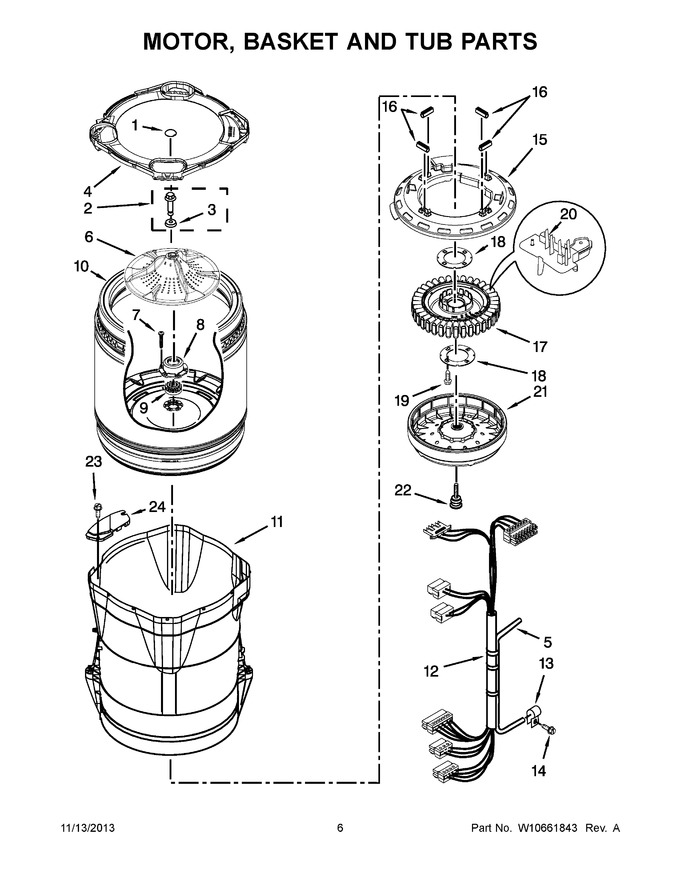

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10384795		Cap, Impeller				$ 21.77
2	W10076270		Screw And Washer Assembly				$ 5.83
3	WPW10076260		Washer   (Replaces: W10076260)				$ 11.88
4	WPW10550152		Tub Ring   (Replaces: W10550152)				$ 203.25
5	WP353244		Hose Pressure Switch   (Replaces: W10297449)			Immediately	$ 59.93
6	WPW10357576		Impeller (washplate)   (Replaces: W10380698)			Immediately	$ 338.07
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10820039		Hub, Basket-driven   (Replaces: W10118114)			Immediately	$ 36.28
9	W10820039		Hub, Basket Driver   (Replaces: 8545953)			Immediately	$ 36.28
10	W10549509		Basket Assembly				$ 941.52
11	W10381078		Assembly, Tub And Drive Shaft			Immediately	$ 748.49
12	W10585735		Harness, Lower				$ 131.45
13	W10005430		Clamp, Cable			Immediately	$ 9.53
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
15	W10137698		Shield, Drive Motor				$ 37.16
16	8565172		Tube, Buffer (set Of 4)		Appelez-nous	-
17	WPW10419333		Stator, Motor   (Replaces: W10419333)			Immediately	$ 349.42
18	WP8557836		Plate, Stator   (Replaces: 8557836)			Immediately	$ 110.55
19	8534042		Screw				$ 5.65
20	WPW10178988		Rps Assembly   (Replaces: W10178988)			Immediately	$ 49.28
21	280146		Rotor, Main Drive Motor   (Replaces: 8565177)			Immediately	$ 343.68
22	N/P		Bolt, Rotor Assembly Non-serviceable (supplied W/rotor)		Appelez-nous	-
23	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
24	W10222008		Filter, Dual Pump Hood				$ 61.51
