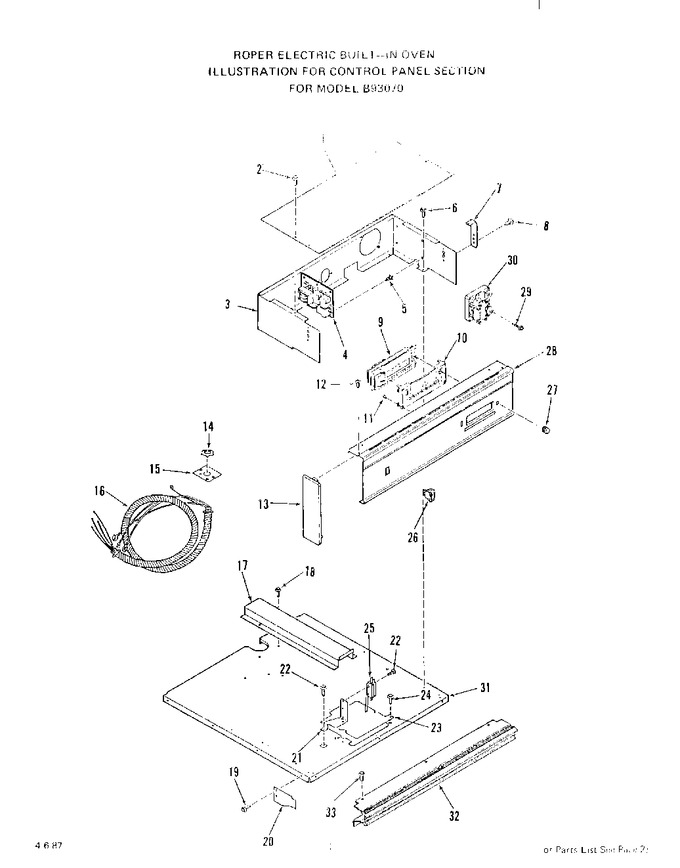

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	337414		Top Cover		Appelez-nous	-
2	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
3	337413		Control Housing		Appelez-nous	-
4	335245		Relay Circuit Board		Appelez-nous	-
5	331469		Spacer Pcb		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	336563		Bracket Control Panel		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
9	4338643CP		Clock   (Replaces: 335448)		Appelez-nous	-
10	334898		Clock Lens		Appelez-nous	-
11	78153		Screw 6-32x5/16``		Appelez-nous	-
12	327320		Screw 10-16x7/16``		Appelez-nous	-
13	336511		Right		Appelez-nous	-
13	336512		Left		Appelez-nous	-
14	110340		Nut (for Key 16)		Appelez-nous	-
15	294983		Plate (for Key 16)		Appelez-nous	-
16	336304		Harness Wire Conduit		Appelez-nous	-
17	327990		Wire Cover		Appelez-nous	-
18	327320		Screw 10-16x7/16``		Appelez-nous	-
19	327320		Screw 10-16x7/16``		Appelez-nous	-
20	336275		Heat Shield		Appelez-nous	-
21	335115		Bracket-micro Switch		Appelez-nous	-
22	327256		Screw		Appelez-nous	-
23	333124		Cover Plate Lock		Appelez-nous	-
24	295850		Screw		Appelez-nous	-
25	334973		Micro Switch-lock		Appelez-nous	-
26	334649		Switch		Appelez-nous	-
27	334914		Clock Knob		Appelez-nous	-
28	336278		Control Panel		Appelez-nous	-
29	313190		Screw 10-32x1``		Appelez-nous	-
30	336560		Fan		Appelez-nous	-
31	337410		Cabinet Top		Appelez-nous	-
32	337415		Control Panel Trim		Appelez-nous	-
33	336296		Screw		Appelez-nous	-
