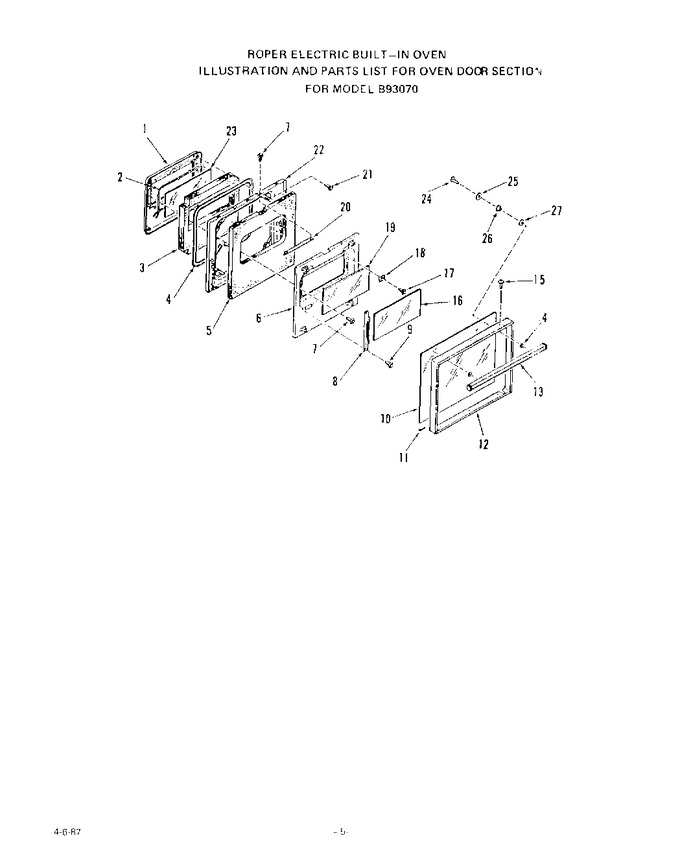

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	331677		Plug-oven Door Lining		Appelez-nous	-
2	302935		Door Seal		Appelez-nous	-
3	328107		Insulation-oven Door Plug		Appelez-nous	-
4	328123		Gasket-oven Door		Appelez-nous	-
5	328106		Insulation-oven Door Lining		Appelez-nous	-
6	336595		Retainer-oven Door Insulation		Appelez-nous	-
7	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
8	328064		Retainer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	336208		Oven Door Glass-outer		Appelez-nous	-
11	112370		Cushion		Appelez-nous	-
12	336210		Frame-oven Door		Appelez-nous	-
13	336203		Handle-oven Door		Appelez-nous	-
14	DE81-05147A		Spacer   (Replaces: 107158)				$ 228.66
15	327621		Screw 6-20x3/8``		Appelez-nous	-
16	328046		Oven Door Glass-intermediate		Appelez-nous	-
17	295849		Screw 10-32x17/32``		Appelez-nous	-
18	326009		Retainer-door Glass (4 Req)		Appelez-nous	-
19	328045		Oven Door Glass-center		Appelez-nous	-
20	WP312967		Stiffener-oven Door Lining   (Replaces: 312967)			Immediately	$ 12.46
21	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
22	331816		Lining-oven Door		Appelez-nous	-
23	328043		Oven Door Glass-inner		Appelez-nous	-
24	300864		Screw		Appelez-nous	-
25	333014		Washer-fiber		Appelez-nous	-
26	333015		Spacer-glass		Appelez-nous	-
27	336312		Sensor		Appelez-nous	-
27	99279		Washer		Appelez-nous	-
27	336310		Main		Appelez-nous	-
27	333040		Lock Switch		Appelez-nous	-
27	336313		Relay		Appelez-nous	-
