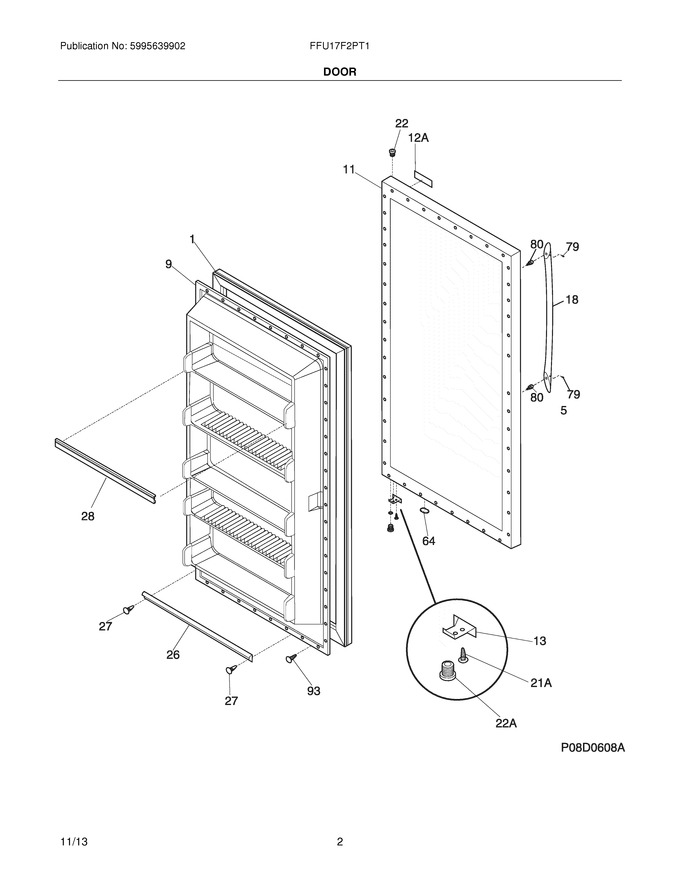

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507216 | Gasket,gray (Replaces: 216522373) |
|
$ 175.54 | |||||
| 2 | 297318600 | Lock Assy |
|
$ 40.97 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 8.41 | ||||
| 9 | 216527816 | Panel-inner Door,frzr |
|
$ 257.51 | |||||
| 11 | 297316561 | Panel-outer Door,titanium Smooth |
|
$ 338.69 | |||||
| 13 | 297257000 | Door Stop,chrome ,rh |
|
$ 18.48 | |||||
| 18 | 242059301 | Handle-door,stainless ,w/set Screws |
|
$ 219.03 | |||||
| 22 | 216970801 | Bearing,hinge ,gray ,top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket,secondary |
|
$ 55.13 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 12.85 | |||||
| 28 | 216806100 | Rack-door,contour ,(3) |
|
$ 80.59 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 64.58 | |||||
| 79 | 218755402 | Screw-set,10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 21.74 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 12A | 242016301 | Nameplate,frigidaire (Replaces: 297434600) |
|
$ 4.73 | |||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 16.07 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 13.66 | |||||
| 2A | 297213300 | Clip,spring |
|
$ 10.17 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 139.81 |
