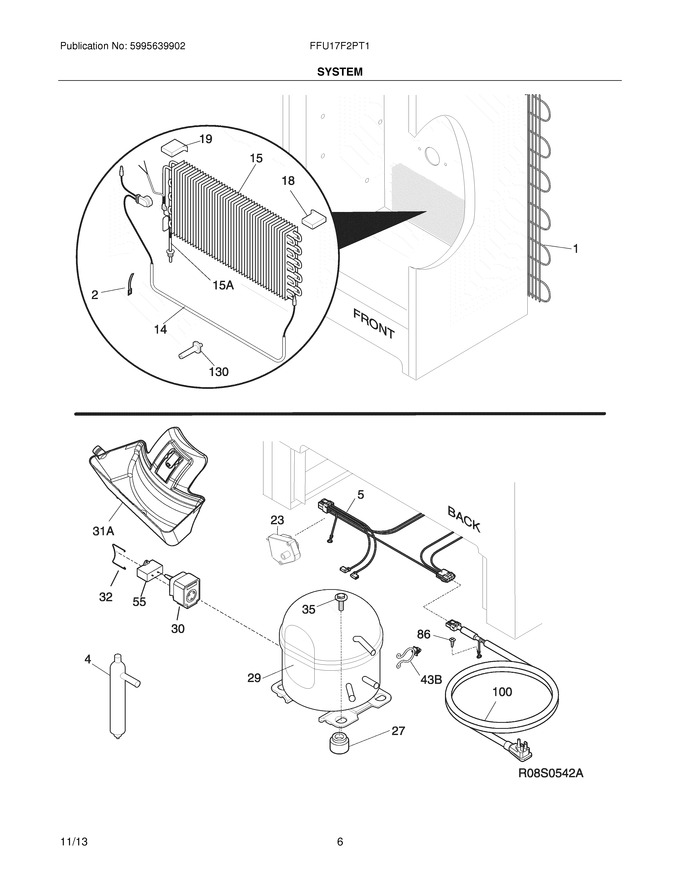

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 71.65
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 35.19
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 16.01
30	297259515		Controller,compressor   (Replaces: 297259502)			Immediately	$ 82.69
32	216954300		Clip,controller				$ 18.90
35	297368500		Bolt,compressor		Appelez-nous	-
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 102.02
31A	297217002		Pan-drain   (Replaces: 297217001)				$ 38.06
43B	297315800		Clip,wire				$ 11.25
F1	5300083897		Condenser				$ 598.19
F100	297366805		Cord,power   (Replaces: 297366804)				$ 76.31
F14	5304496284		Defrost Heater,w/thermostat ,termination Swt   (Replaces: 297348700)			Immediately	$ 122.55
F15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 190.38
F23	5304518034		Timer Defrost 115v Tab   (Replaces: 297318010)			Immediately	$ 72.16
F29	240550948		Compressor,w/clip   (Replaces: 297414051)			Immediately	$ 325.00
F5	297170200		Harness-main				$ 86.81
F55	297286803		Capacitor-run			Immediately	$ 31.97
NI	216502500		Sleeve,suction Line				$ 12.05
NI	297014702		Plug-suction Line				$ 10.45
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37

    View Diagram in Separate Window       Print Part List
