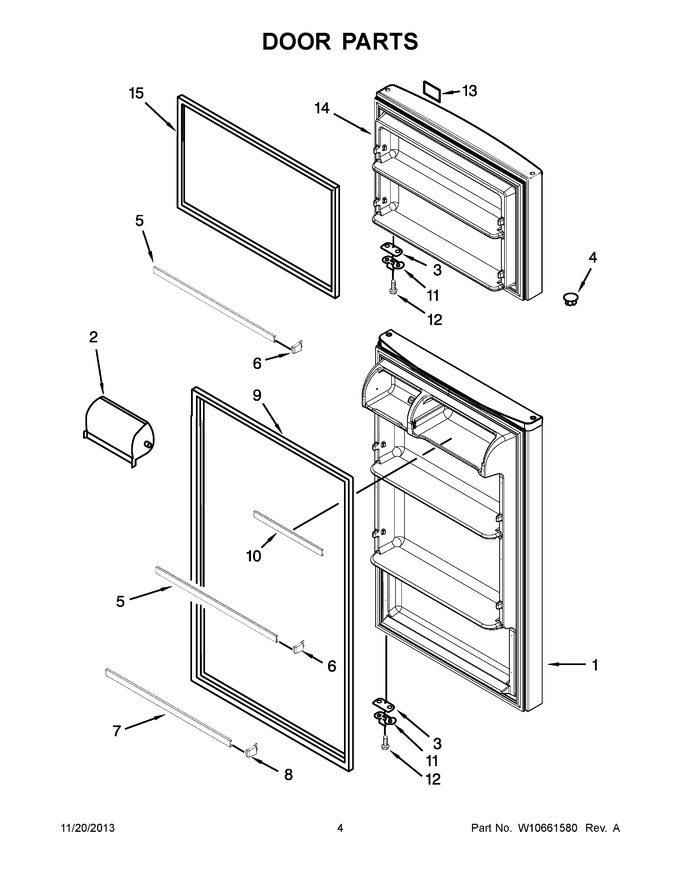

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10267772 | Refrigerator Door (includes Item 9 & Molded Handle) (black) |
|
- | |||||
| 1 | W10267761 | Refrigerator Door (includes Item 9 & Molded Handle) (stainless) |
|
- | |||||
| 1 | W10267739 | Refrigerator Door (includes Item 9 & Molded Handle) (white) |
|
- | |||||
| 2 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 4 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 4 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 6 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 7 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 8 | WP2195916K | Endcap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 9 | WP2319264T | Door Gasket, Magnetic (beige) (Replaces: W10190032) |
|
Immediately | $ 192.71 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 10 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 11 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 12 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 13 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 13 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 14 | W10267773 | Freezer Door (includes Item 15 & Molded \handle) (black) |
|
- | |||||
| 14 | LW10267762 | Freezer Door (includes Item 15 & Molded Handle) (stainless) (Replaces: W10267762) |
|
$ 621.61 | |||||
| 14 | W10267735 | Freezer Door (includes Item 15 & Molded Handle) (white) |
|
- | |||||
| 15 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 15 | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: W10190031) |
|
Immediately | $ 169.53 |
