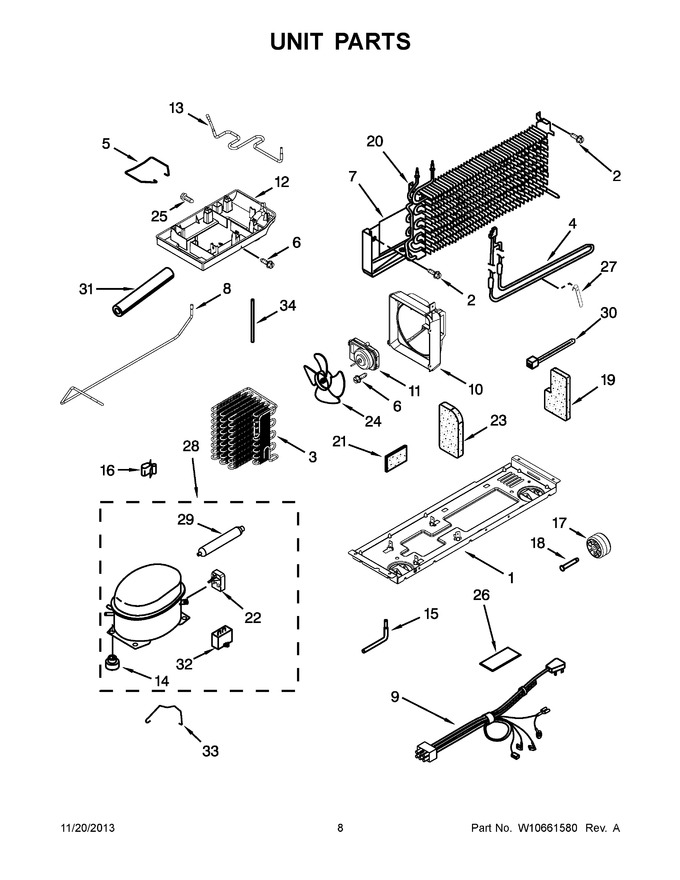

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573847 | Support Plate, Compressor |
|
Immediately | $ 148.66 | ||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | W11685315 | Condenser (Replaces: W10487115) |
|
Immediately | $ 102.81 | ||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W10585747 | Tube, Suction |
|
$ 79.92 | |||||
| 9 | W10839396 | Wire Assembly, Unit (Replaces: W10488462) |
|
$ 95.12 | |||||
| 10 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 79.76 | |||||
| 11 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 12 | W10565417 | Tray, Evaporator |
|
$ 38.36 | |||||
| 13 | W10585741 | Tube, Discharge |
|
$ 118.59 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
$ 7.55 | |||||
| 15 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 21 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 22 | WPW10399283 | Start Device (Replaces: W10399283) |
|
$ 176.31 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 109.99 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.79 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 27 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 28 | W10822653 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10399120) |
|
$ 390.64 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 31 | 2264838 | Sleeve |
|
$ 92.28 | |||||
| 32 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 33 | 2212996 | Bale Strap |
|
$ 12.72 | |||||
| 34 | W10582029 | Tube, Drain |
|
- | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 3.95 Oz (r-134) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
