01 - Cover Sheet

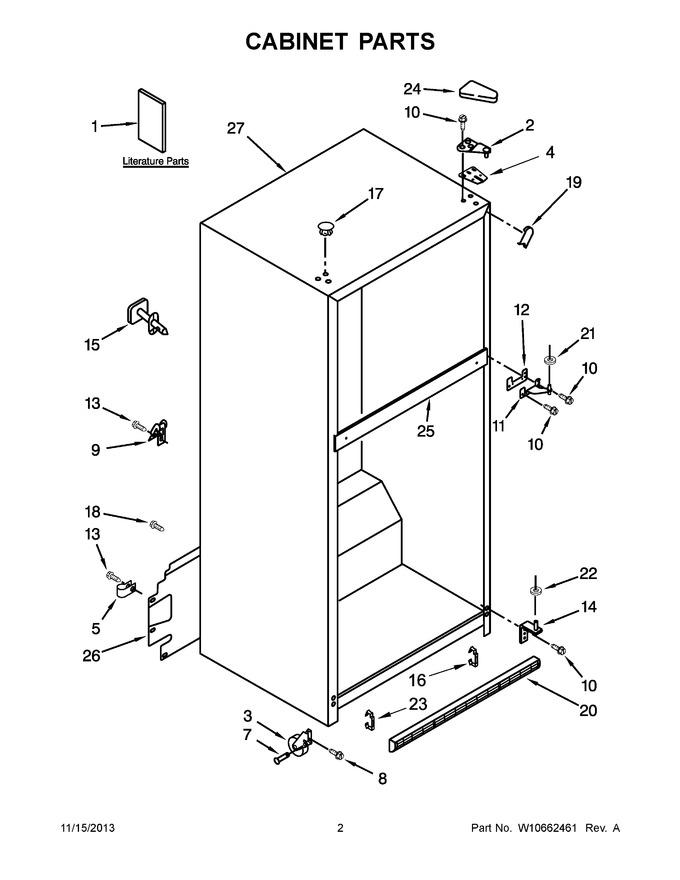

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10551713 | Guide, Use & Care |
|
- | |||||
| 1 | W10404596 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10417749 | Energy Label |
|
- | |||||
| 2 | WP2261963 | Top Hinge Assembly (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 114.75 | |||||
| 4 | W11169703 | Shim, Hinge Top (white) (Replaces: 2221885) |
|
$ 15.79 | |||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 7 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 8 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 9 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 13 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 14 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | 2254385 | Clip, Grille |
|
$ 88.87 | |||||
| 17 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 18 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 19 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 19 | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 20 | WP2254386 | Assembly, Grille (white) (Replaces: 2254386) |
|
$ 99.26 | |||||
| 20 | 2254388 | Assembly, Grille (black) |
|
$ 40.22 | |||||
| 21 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 22 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 23 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 24 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 24 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 25 | N/P | Rail, Center (not Serviced |
|
- | |||||
| 26 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 105.27 | |||||
| 27 | N/P | Cabinet (not A Serviceable Part) |
|
- |
