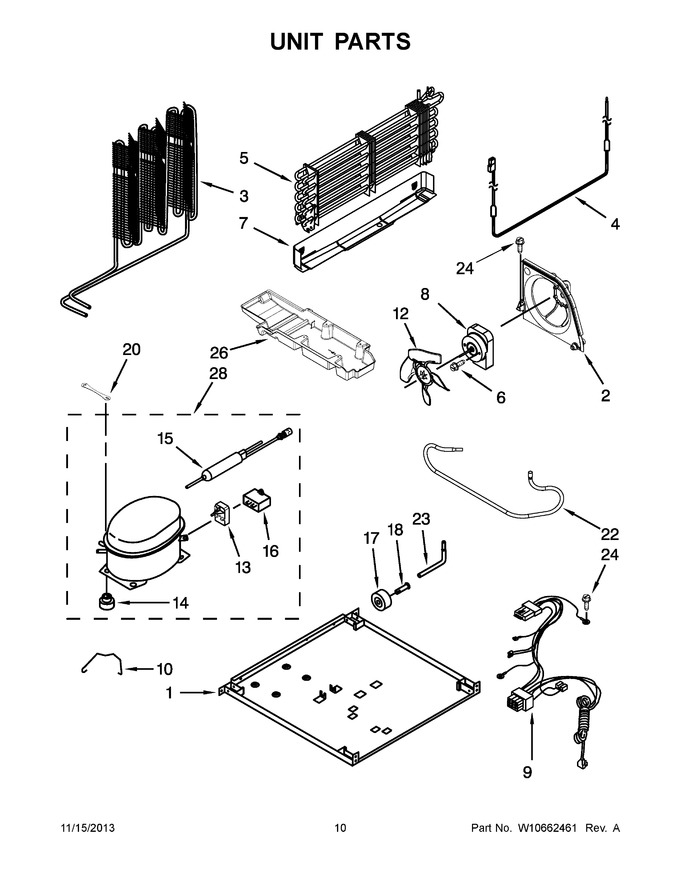

06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 164.30 | |||||
| 2 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 278.20 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | WPW10314205 | Evaporator Assembly (Replaces: W10314205) |
|
$ 361.39 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 124.18 | ||||
| 9 | W11625681 | Harness, Unit (Replaces: W10410814) |
|
$ 113.83 | |||||
| 10 | W10174383 | Bale Strap |
|
- | |||||
| 12 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 13 | W10892065 | Start Device Combination (start Relay And Overload) (Replaces: W10330832) |
|
$ 185.18 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 16 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 22 | W10510988 | Tube, Suction |
|
$ 64.37 | |||||
| 23 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 24 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 26 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 151.95 | |||||
| 28 | W10233960 | Compressor (Replaces: W10445422) |
|
Immediately | $ 539.34 | ||||
| NI | N/P | Refrigerant Charge 3.7 Oz. (r-134a) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
