Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580767 Tech Sheet, French Appelez-nous -
1 W10435040 Installation, Instructions Appelez-nous -
1 W10638473 Energy Guide Appelez-nous -
1 W10596231 Use & Care Guide, English/french Appelez-nous -
1 W10580766 Tech Sheet, English Appelez-nous -
2 W11613572 Arm, Hinge (right Hand)   (Replaces: W10274921) In-Stock Immediately $ 83.93

2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10274922) In-Stock Immediately $ 71.77

3 W10850371 Stiffener, Door   (Replaces: W10195120) In-Stock Immediately $ 32.88

4 WPW10505605 Front Panel (includesi Tems 6 & 11) (biscuit/bisque)   (Replaces: W10505605) Special Order $ 350.84

4 WPW10505606 Front Panel (includesi Tems 6 & 11) (stainless)   (Replaces: W10505606) Special Order $ 414.87

4 W10531291 Front Panel (includesi Tems 6 & 11) (black) Special Order $ 138.48

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10369028 Access Panel (biscuit/bisque) Special Order $ 170.73

6 W11178521 Nameplate (white)   (Replaces: W10387117) In-Stock Immediately $ 63.13

6 WPW10393264 Nameplate (grey)   (Replaces: W10393264) Special Order $ 67.74

7 W10831329 Insulation, Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

8 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

8 WPW10503550 Fastener (biscuit/bisque)   (Replaces: W10503550) Special Order $ 29.00

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

11 W10485103 Pocket Assembly (biscuit/bisque) Appelez-nous -
11 W10485102 Pocket Assembly (white) Appelez-nous -
11 W10485101 Pocket Assembly (black) Special Order $ 31.62

11 W10571384 Pocket Assembly (silver) Appelez-nous -
12 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93


    View Diagram in Separate Window     Print Icon   Print Part List

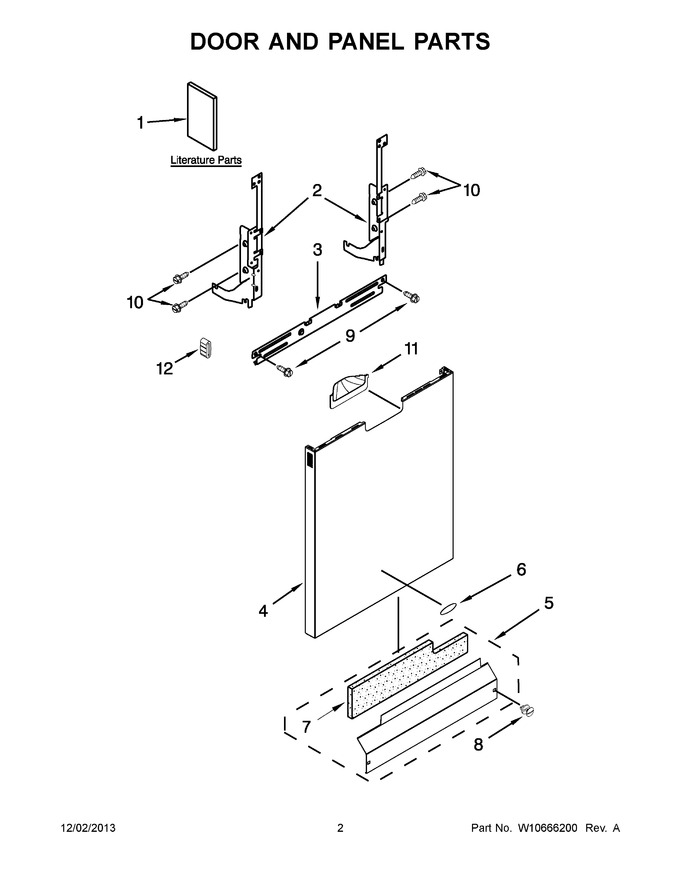

Diagram for WDF730PAYM7
