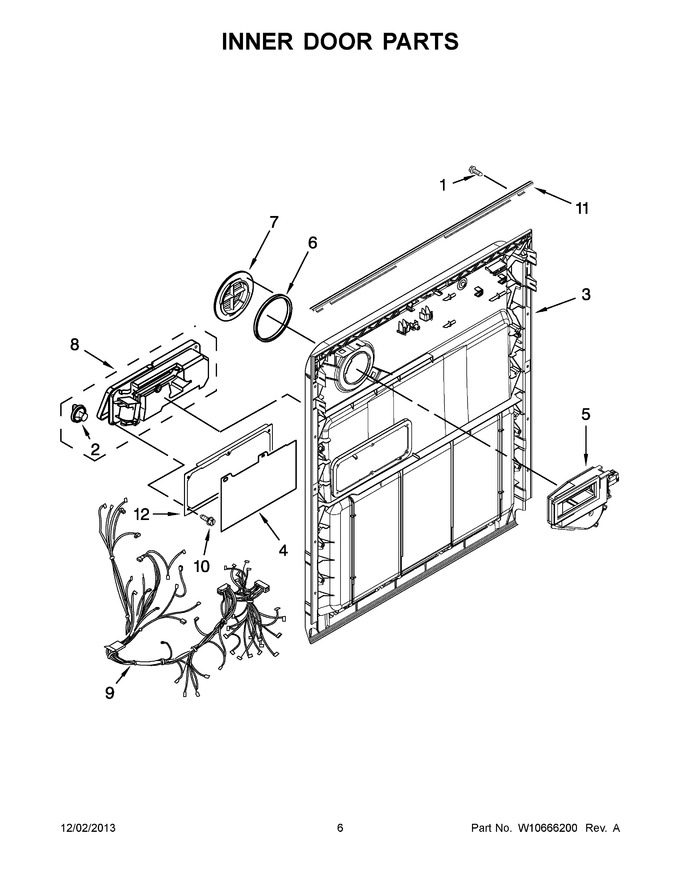

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | WP8558307 | Knob, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 21.27 | ||||
| 3 | W10300784 | Inner Door Assembly (also Order Item 6) |
|
$ 101.48 | |||||
| 4 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 32.36 | ||||
| 5 | WPW10329609 | Vent Assembly (also Order Item 6) (Replaces: W10329609) |
|
Immediately | $ 86.34 | ||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10334900 | Bezel, Vent (also Order Item 6) (Replaces: W10334900) |
|
$ 45.85 | |||||
| 8 | WPW10605015 | Dispenser Assembly (Replaces: W10605015) |
|
Immediately | $ 229.25 | ||||
| 9 | W10514908 | Wiring Harness |
|
- | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 11 | W10837566 | Seal, Console/door (Replaces: W10274923) |
|
Immediately | $ 86.84 | ||||
| 12 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 |
