01 - Cover Sheet

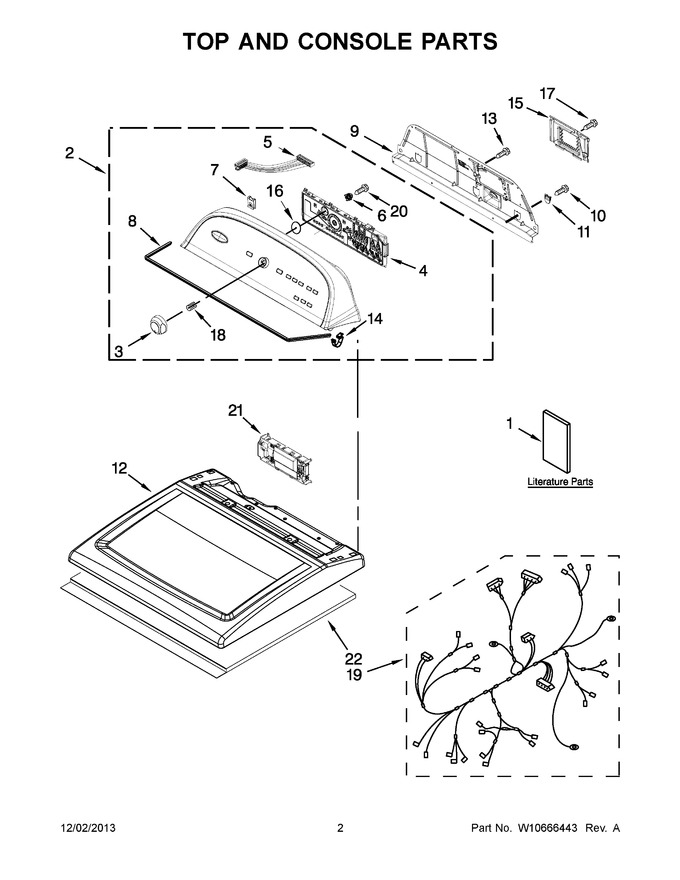

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10562348 | Guide, Use And Care |
|
- | |||||
| 1 | W10287249 | Wiring Diagram |
|
- | |||||
| 1 | W10417013 | Tech Sheet |
|
- | |||||
| 1 | W10562362 | Installation Instructions |
|
- | |||||
| 2 | W10562304 | Console Assembly (complete) (white) |
|
- | |||||
| 3 | W10579298 | Assembly, Control Knob (white) |
|
$ 43.80 | |||||
| 4 | WPW10269626 | Assembly, User Interface (Replaces: W10269626) |
|
Immediately | $ 313.29 | ||||
| 5 | W10285494 | Cable, User Interface |
|
- | |||||
| 6 | W10274524 | Tensioner, Fascia |
|
- | |||||
| 7 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 8.13 | |||||
| 8 | W10280079 | Seal, Console |
|
- | |||||
| 9 | W10550615 | Panel, Rear Console |
|
$ 116.83 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | W10279552 | Plug-upper Rear Panel |
|
- | |||||
| 12 | W11641121 | Top (white) (Replaces: W10260246) |
|
Immediately | $ 215.10 | ||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 16 | W10323092 | Seal, User Interface |
|
- | |||||
| 17 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 19 | W10287252 | Wiring Harness |
|
- | |||||
| 20 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 21 | WPW10214008 | Control, Electronic (Replaces: W10214008) |
|
$ 400.65 | |||||
| 22 | W10123956 | Panel, Dampening |
|
- |
