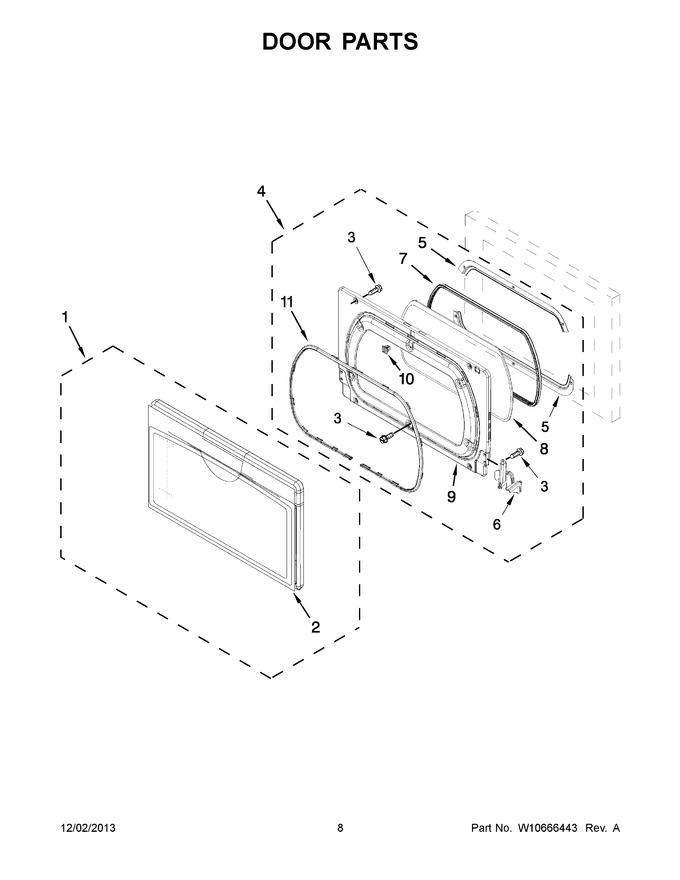

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284124		Outer Door Assembly (white)		Appelez-nous	-
2	W10284116		Window, Door		Appelez-nous	-
3	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
4	W11376676		Inner Door Assembly   (Replaces: W10513691)		Appelez-nous	-
5	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
6	W11371722		Assembly, Hinge (right)   (Replaces: W10284141)				$ 106.42
6	W11376139		Assembly, Hinge (left)   (Replaces: W10284140)				$ 106.42
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 263.61
9	W10822055		Door, Inner   (Replaces: W10470569)		Appelez-nous	-
10	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
11	WPW10354795		Seal, Door   (Replaces: W10284123)				$ 130.12
