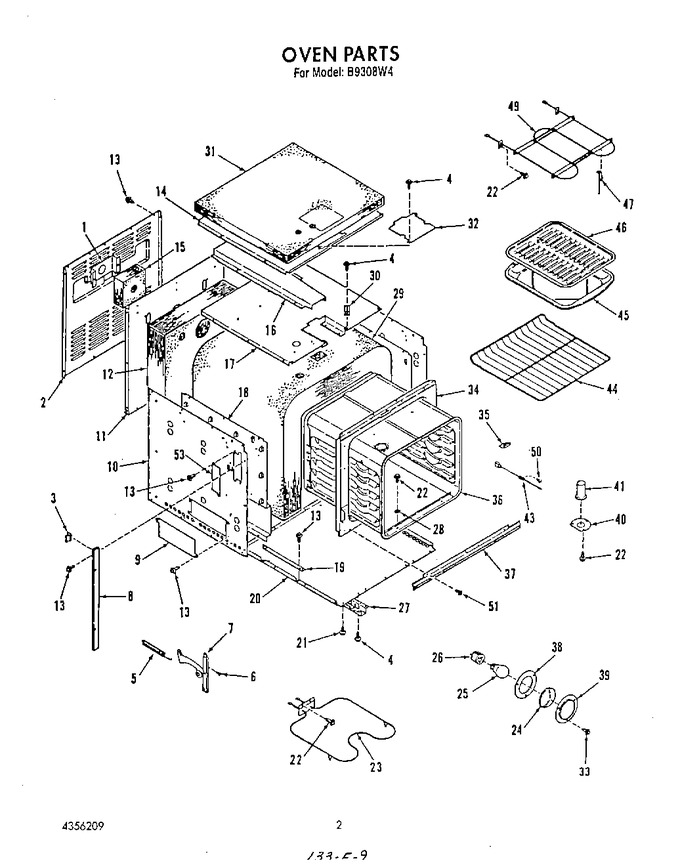

02 - Oven
03 - Control Panel
04 - Oven Door Lock
05 - Oven Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 47333934 | Retainer, Oven Lamp Insulation |
|
- | |||||
| 2 | 4338215 | Back, Cabinet |
|
- | |||||
| 3 | 4342758 | Spacer (mdl. B9308w4) |
|
- | |||||
| 3 | 4335524 | Spacer (mdl. B9308 B4) |
|
- | |||||
| 4 | W10850756 | Screw, No.10-32 X 7/16 (Replaces: 4331106) |
|
$ 7.38 | |||||
| 5 | 4335885 | Spring-door (lt/rt) |
|
- | |||||
| 6 | 4336631 | Screw |
|
- | |||||
| 7 | 4338609 | Hinge (right) |
|
- | |||||
| 7 | 4338610 | Hinge (left) |
|
- | |||||
| 8 | 4338480 | Side Trim (lt/rt) (mdl. B9308w4) |
|
- | |||||
| 8 | 4337701 | Side Trim (lt/rt) (mdl. B9308b4) |
|
- | |||||
| 9 | 4335540 | Cover Plate |
|
- | |||||
| 10 | 4338137 | Cabinet Side (lt/rt) |
|
- | |||||
| 11 | 4337713 | Cover, Rear |
|
- | |||||
| 12 | 4337724 | Insulation, Back & Bottom (1 Pc) |
|
- | |||||
| 13 | W10850756 | Screw, No.10-16 X 7/16 (Replaces: 4343086) |
|
$ 7.38 | |||||
| 14 | 4336890 | Retainer-insul. |
|
- | |||||
| 15 | 4353890 | Insul. Oven Light |
|
- | |||||
| 16 | 4337876 | Vent Box |
|
- | |||||
| 17 | 4335464 | Retainer, Oven Top Insulation |
|
- | |||||
| 18 | 4338298 | Retainer, Insul. Oven Side (lt/rt) |
|
- | |||||
| 19 | 4335558 | Bracket, Retainer (lt/rt) |
|
- | |||||
| 20 | 4335459 | Bottom, Cabinet |
|
- | |||||
| 21 | 4323953 | Screw No.10-32x1/4 |
|
- | |||||
| 22 | 4323776 | Screw 10-32x17/32 |
|
- | |||||
| 23 | 4335541 | Element, Bake |
|
- | |||||
| 24 | 4324415 | Lens, Oven Light |
|
- | |||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 4338591) |
|
Immediately | $ 16.80 | ||||
| 26 | W10856866 | Holder, Oven Light (Replaces: 4323560) |
|
$ 6.80 | |||||
| 27 | 4338286 | Channel (lt/rt) |
|
- | |||||
| 28 | 4323979 | Washer |
|
- | |||||
| 29 | 4354810 | Insulation-top & Sides (1 Pc) |
|
- | |||||
| 30 | 4331687 | Bracket (2) |
|
- | |||||
| 31 | 4354912 | Insulation-top |
|
- | |||||
| 32 | 4336895 | Cover Plate-lock |
|
- | |||||
| 33 | WP308685 | Screw, No.10 X1/2 (Replaces: 4335117) |
|
Immediately | $ 7.08 | ||||
| 34 | 4338300 | Frame, Front |
|
- | |||||
| 35 | 4329206 | Cover |
|
- | |||||
| 36 | 4337686 | Oven |
|
- | |||||
| 37 | 4338483 | Trim, Lower (mdl. B9308w4) |
|
- | |||||
| 37 | 4338612 | Trim, Lower (mdl. B9308b4) |
|
- | |||||
| 38 | 4324481 | Seal-oven Light |
|
- | |||||
| 39 | 4324482 | Retainer, Lens |
|
- | |||||
| 40 | 4335624 | Clamp, Vent Tube |
|
- | |||||
| 41 | 4331173 | Vent Tube |
|
- | |||||
| 43 | 4337170 | Sensor |
|
- | |||||
| 44 | 4335557 | Oven Rack (2) |
|
- | |||||
| 45 | 4396923 | Pan, Broiler (Replaces: 4336602) |
|
Immediately | $ 54.64 | ||||
| 46 | 4396923 | Broiler, Grid Pan (Replaces: 4334897) |
|
Immediately | $ 54.64 | ||||
| 47 | 4334358 | Support-broiler Element (2) |
|
- | |||||
| 49 | 4335542 | Element, Broiler |
|
- | |||||
| 50 | 4324445 | Screw |
|
- | |||||
| 51 | 4337728 | Trim Screw (mdl. B9308b4) |
|
- | |||||
| 51 | 4338484 | Trim Screw (mdl. B9308w4) |
|
- | |||||
| 53 | 4325036 | Wire Harness (3/16``) |
|
- | |||||
| 53 | 4325035 | Wire Harness (flag Terminal 1/4`` Faston Terminal) |
|
- | |||||
| 53 | 4337929 | Wire Harness (sensor) |
|
- | |||||
| 53 | 4338202 | Cover Plate |
|
- | |||||
| 53 | 4337930 | Wire Harness (fuse, Thermal) |
|
- | |||||
| 53 | WP285432 | Wire Harness (1/4``) (Replaces: 4325037) |
|
$ 7.34 |
