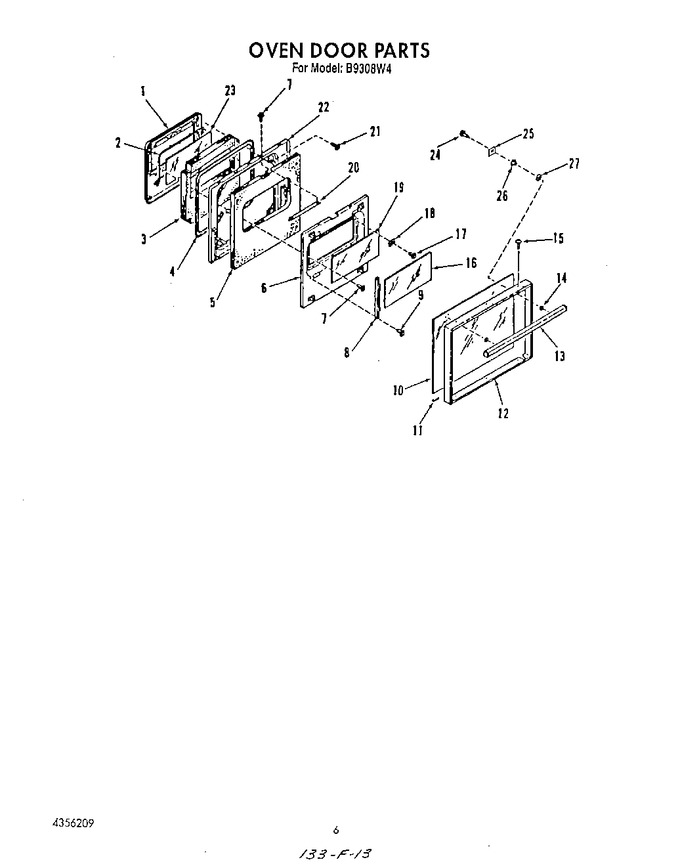

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338241		Plug, Door Lining		Appelez-nous	-
2	4342634		Seal, Door		Appelez-nous	-
3	4354814		Insulation-plug		Appelez-nous	-
4	4335546		Seal, Door		Appelez-nous	-
5	4354813		Insulation-lining		Appelez-nous	-
6	4337826		Retainer, Insul.		Appelez-nous	-
7	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
8	4335518		Retainer-glass (lt/rt)		Appelez-nous	-
9	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
10	4337692		Glass, Outer Door (mdl. B9308b4)		Appelez-nous	-
10	4338479		Glass, Outer Door (mdl. B9308w4)		Appelez-nous	-
11	4324217		Cushion		Appelez-nous	-
12	4338476		Door Frame (mdl. B9308w4)		Appelez-nous	-
12	4337694		Door Frame (mdl. B9308b4)		Appelez-nous	-
13	4338477		Handle, Door (mdl. B9308w4)		Appelez-nous	-
13	4337687		Handle, Door (mdl. B9308b4)		Appelez-nous	-
14	4323472		Spacer (mdl. B9308w4)		Appelez-nous	-
14	4323997		Spacer (mdl. B9308b4)		Appelez-nous	-
15	4336048		Screw (mdl. B9308b4)		Appelez-nous	-
15	4338485		Screw (mdl. B9308w4)		Appelez-nous	-
16	4335509		Glass, Intermediate		Appelez-nous	-
17	4327611		Screw 10-32x17/32		Appelez-nous	-
18	4334791		Retainer-glass (4)		Appelez-nous	-
19	4335508		Glass-center Door		Appelez-nous	-
20	4338250		Support, Lining		Appelez-nous	-
21	W10850756		Screw No.10-32x3/8   (Replaces: 4323777)				$ 7.38
22	4338084		Lining-door		Appelez-nous	-
23	4335506		Glass-inner Door		Appelez-nous	-
24	4342665		Screw		Appelez-nous	-
25	4342666		Retainer		Appelez-nous	-
26	4336869		Spacer, Glass		Appelez-nous	-
27	4336868		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
