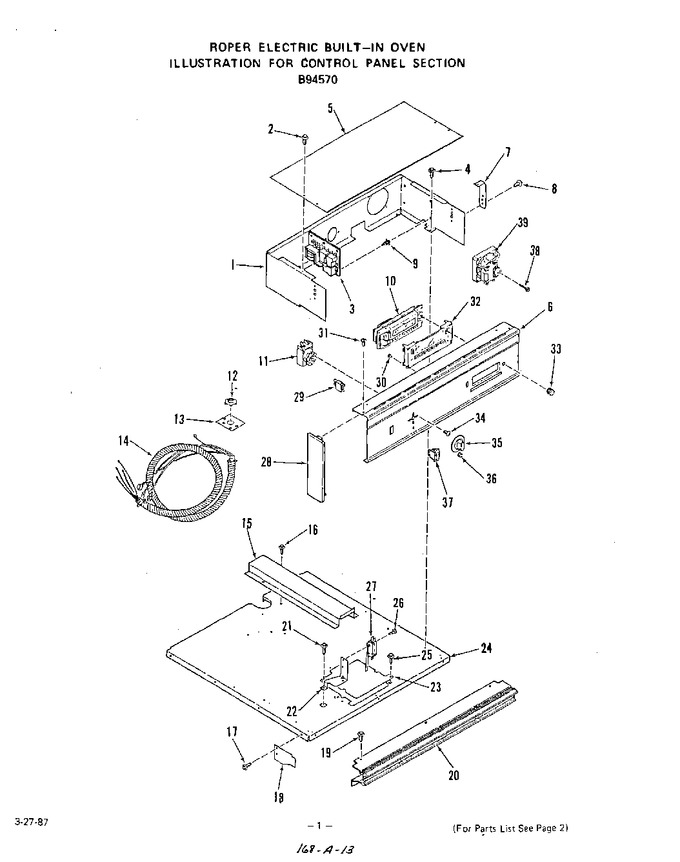

SELECT A DIAGRAM

02 - Control Panel


03 - Oven Door Lock


04 - Body


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	337413		Control Housing		Appelez-nous	-
2	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
3	335245		Relay Board		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	337414		Top Cover-control Housing		Appelez-nous	-
6	336279		Panel Control		Appelez-nous	-
7	336563		Bracket Control Panel		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
9	311469		Spacer Pcb		Appelez-nous	-
10	4338643CP		Clock   (Replaces: 335448)		Appelez-nous	-
11	320938		Thermostat		Appelez-nous	-
12	110340		Nut (for Key 14)		Appelez-nous	-
13	294983		Plate (for Key 14)		Appelez-nous	-
14	336305		Harness Conduit Asm.		Appelez-nous	-
15	327990		Wire Cover		Appelez-nous	-
16	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
17	327320		Screw 10-16x7/16``		Appelez-nous	-
18	336275		Heat Shield (lt. Or Rt.)		Appelez-nous	-
19	327320		Screw 10-16x7/16``		Appelez-nous	-
20	337413		Trim Control Panel		Appelez-nous	-
21	327320		Screw 10-16x7/16``		Appelez-nous	-
22	335115		Bracket-micro Switch		Appelez-nous	-
23	333124		Cover Plate Lock		Appelez-nous	-
24	337410		Cabinet Top		Appelez-nous	-
25	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
26	327256		Screw 6-32x7/8``		Appelez-nous	-
27	334973		Micro Switch-lock		Appelez-nous	-
28	336512		Left		Appelez-nous	-
28	336511		Right		Appelez-nous	-
29	331717		Light Indicator		Appelez-nous	-
30	78153		Screw 6-32x.312		Appelez-nous	-
31	321665		Screw 10-32x1/2``		Appelez-nous	-
32	334898		Clock Lens		Appelez-nous	-
33	339197		Clock Knob		Appelez-nous	-
34	78565		Screw 8-32x.187		Appelez-nous	-
35	336288		Thermostat Knob		Appelez-nous	-
36	331705		Lens-indicator Light		Appelez-nous	-
37	334649		Switch		Appelez-nous	-
38	313190		Screw 10-32x1``		Appelez-nous	-
39	335558		Fan Asm		Appelez-nous	-
