02 - Control Panel
03 - Oven Door Lock
04 - Body
05 - Upper Oven Door
06 - Lower Oven Door
SELECT A DIAGRAM
New Model Search:

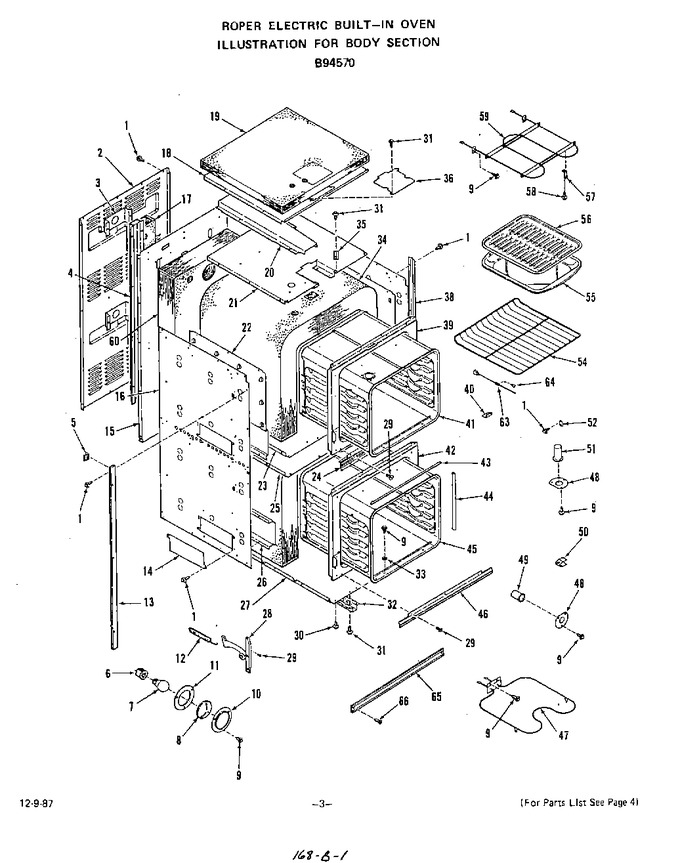

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 328090 | Cabinet Back |
|
- | |||||
| 3 | 323630 | Insulation Retainer-oven Light (up. & Lo. Oven) |
|
- | |||||
| 4 | 328148 | Rear Oven Vent Box |
|
- | |||||
| 5 | 328077 | Spacer (6 Req.) |
|
- | |||||
| 6 | 87883 | Holder-oven Light Bulb (up. & Lo. Oven) |
|
- | |||||
| 7 | DA96-01243C | Oven Light Bulb (up. & Lo. Oven) (Replaces: 111257) |
|
$ 160.00 | |||||
| 8 | 114989 | Oven Light Lens (up. Oven) |
|
- | |||||
| 9 | DE81-07393A | Screw 10 - 32 X 17/32`` (Replaces: 102428) |
|
$ 193.45 | |||||
| 10 | 229372 | Lens Retainer-oven Light (up. Oven) |
|
- | |||||
| 11 | 229371 | Gasket-oven Light (up. Oven) |
|
- | |||||
| 12 | 328962 | Upper Oven |
|
- | |||||
| 12 | 328961 | Lower Oven |
|
- | |||||
| 13 | 336248 | Side Trim (lt. Or Rt.) |
|
- | |||||
| 14 | 328112 | Cover Plate (4 Req.) |
|
- | |||||
| 15 | 336258 | Main Back |
|
- | |||||
| 16 | 328085 | Cabinet Side-lt. Or Rt. |
|
- | |||||
| 17 | WP660579 | Insulation-oven Light (up. & Lo. Oven) (Replaces: 311715) |
|
$ 164.26 | |||||
| 18 | 333116 | Insulation Retainer-cabinet Top |
|
- | |||||
| 19 | 336572 | Insulation-cabinet Top |
|
- | |||||
| 20 | 336779 | Vent Box |
|
- | |||||
| 21 | 327968 | Insulation Retainer-oven Top |
|
- | |||||
| 22 | 328089 | Insulation Retainer-oven Side (lt. Or Rt.) |
|
- | |||||
| 23 | 327966 | Bottom Insulation Retainer (up. Oven) |
|
- | |||||
| 24 | 336240 | Center Front Trim |
|
- | |||||
| 25 | 327963 | Insulation Retainer-oven Top (lo. Oven) |
|
- | |||||
| 26 | 328071 | Door Spring Insulation Retainer (lt. Or Rt.) |
|
- | |||||
| 27 | 327948 | Cabinet Bottom |
|
- | |||||
| 28 | 335599 | Left (2 Req) |
|
- | |||||
| 28 | 335600 | Right (2 Req) |
|
- | |||||
| 29 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 30 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 31 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 8.63 | |||||
| 32 | 328042 | Bottom Cabinet Channel (lt. Or Rt.) |
|
- | |||||
| 33 | 106462 | Washer |
|
- | |||||
| 34 | 328103 | Insulation-oven Top & Sides (1 Piece) (up & Lo. Oven) |
|
- | |||||
| 35 | 313627 | Bracket (2 Req) |
|
- | |||||
| 36 | 323648 | Cover Plate-lock |
|
- | |||||
| 38 | 325532 | Raceway |
|
- | |||||
| 39 | 336567 | Front Frame-up. Oven |
|
- | |||||
| 40 | 304835 | Cover-lo. & Up. Oven |
|
- | |||||
| 41 | 336190 | Upper Oven Body |
|
- | |||||
| 42 | 331663 | Front Frame-lo. Oven |
|
- | |||||
| 43 | 328809 | Top Seal-oven Door (lo. Oven) |
|
- | |||||
| 44 | 329204 | Side Seal-oven Door (rt. Or Lt.) (lo. Oven) |
|
- | |||||
| 45 | 331647 | Lower Oven Body |
|
- | |||||
| 46 | 336243 | Lower Trim |
|
- | |||||
| 47 | 328113 | Bake Element-up.& Lo. Oven |
|
- | |||||
| 48 | 328303 | Clamp-oven Vent |
|
- | |||||
| 49 | 294679 | Vent Tube-lower Oven |
|
- | |||||
| 50 | 291123 | Retainer, Thermostat Bulb (lo. Oven) 2 Req |
|
- | |||||
| 51 | WP660579 | Vent Tube-upper Oven (Replaces: 311716) |
|
$ 164.26 | |||||
| 52 | 237762 | Cover Plate-thermostat Bulb (2 Req.) |
|
- | |||||
| 53 | 321539 | Clip |
|
- | |||||
| 54 | WP330190 | Oven Rack (2 Up. Oven & 1 Lo. Oven) (Replaces: 328135) |
|
$ 44.45 | |||||
| 55 | 331592 | Broiler Pan |
|
- | |||||
| 56 | 326297 | Broiler Pan Grid |
|
- | |||||
| 57 | 324809 | Support-broil Element (2 Req) |
|
- | |||||
| 58 | 69605 | Screw 10abx3/8`` |
|
- | |||||
| 59 | 328115 | Broil Element (up. Oven) |
|
- | |||||
| 60 | 328104 | Insulation-oven Back & Bottom (1 Piece) |
|
- | |||||
| 63 | 12001656 | Sensor (Replaces: 334300) |
|
Immediately | $ 50.14 | ||||
| 64 | 336152 | Screw |
|
- | |||||
| 65 | 338119 | Cabinet Trim (optional) |
|
- | |||||
| 66 | 336297 | Screw (optional) |
|
- |
