View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts

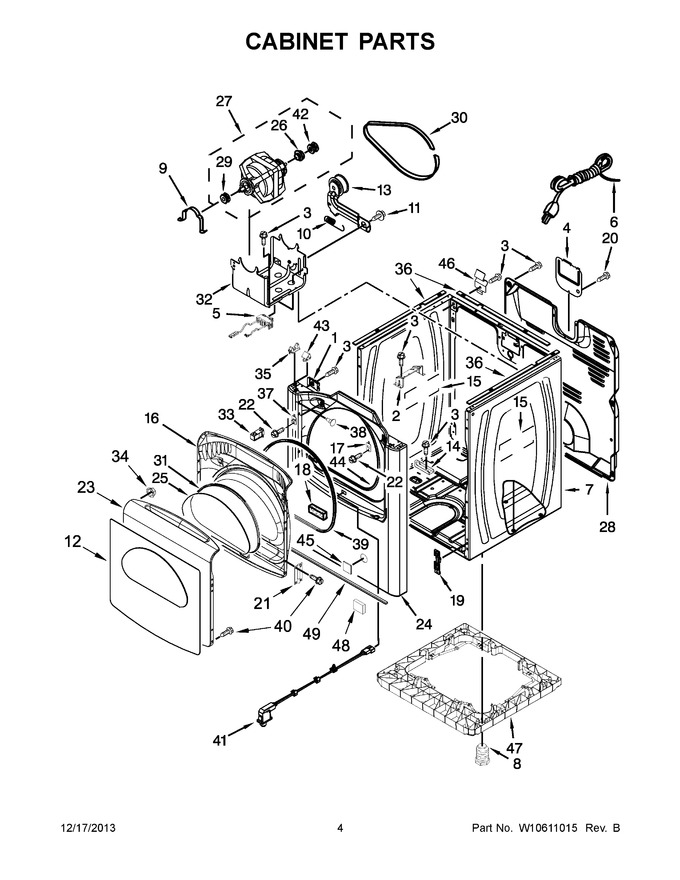

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 2 | 8544753 | Bracket, Burner Support |
|
- | |||||
| 3 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 4 | W11736322 | Plate, Cover Terminal Block (Replaces: 8558833) |
|
- | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10411937) |
|
Immediately | $ 36.06 | ||||
| 6 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 7 | W10223154 | Cabinet (white) (Replaces: W10183827) |
|
$ 354.38 | |||||
| 7 | W10391494 | Cabinet (chrome Shadow) |
|
$ 335.36 | |||||
| 7 | W10304161 | Cabinet (cherry Metallic) |
|
- | |||||
| 8 | W10813918 | Foot, Dryer (Replaces: W10363894) |
|
Immediately | $ 13.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | 8578931 | Window, Outer Door |
|
$ 164.08 | |||||
| 13 | WPW10547292 | Assembly, Idler (Replaces: W10547292) |
|
Immediately | $ 43.98 | ||||
| 14 | W10201446 | Bracket-gas Pipe |
|
- | |||||
| 15 | W10123956 | Panel, Dampening |
|
- | |||||
| 16 | 8571357 | Door, Inner |
|
$ 143.15 | |||||
| 17 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 29.69 | |||||
| 18 | 3350013 | Foam |
|
- | |||||
| 19 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 20 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 21 | WP8565018 | Hinge, Assembly (white) (Replaces: 8565018) |
|
$ 115.34 | |||||
| 21 | W10638377 | Hinge Assembly (cherry Metallic) |
|
- | |||||
| 21 | W10463338 | Hinge Assembly (chrome Shadow) |
|
- | |||||
| 22 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 7.55 | |||||
| 23 | 8571365 | Door, Outer (white) |
|
$ 70.67 | |||||
| 23 | W10391506 | Door, Outer (chrome Shadow) |
|
$ 138.25 | |||||
| 23 | W10638376 | Door, Outer (cherry Metallic) |
|
$ 125.06 | |||||
| 24 | WPW10463262 | Panel, Front (white) (Replaces: W10463262) |
|
$ 362.65 | |||||
| 24 | W10463266 | Panel, Front (chrome Shadow) |
|
- | |||||
| 24 | W10638370 | Panel, Front (cherry Metallic) |
|
- | |||||
| 25 | 8558846 | Glass, Inner Door |
|
$ 120.50 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 27 | WPW10448896 | Assembly, Motor (60 Hertz) (Replaces: W10396036) |
|
Immediately | $ 343.09 | ||||
| 28 | W10140148 | Panel, Rear |
|
$ 139.84 | |||||
| 29 | 8544743 | Pulley, Blower |
|
$ 74.26 | |||||
| 30 | WP8547157 | Belt, Drive (Replaces: 8547157) |
|
Immediately | $ 65.46 | ||||
| 31 | W10076050 | Seal, Window |
|
$ 121.65 | |||||
| 32 | 8547158 | Bracket, Motor |
|
$ 65.31 | |||||
| 33 | WPW10111905 | Assembly, Door Catch (Replaces: W10111905) |
|
Immediately | $ 7.59 | ||||
| 34 | WP308499 | Palnut (Replaces: 308499) |
|
$ 7.30 | |||||
| 35 | WP8568303 | Locator, Snap Down (Replaces: 8568303) |
|
$ 7.94 | |||||
| 36 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 37 | W10295405 | Assembly, Strike And Plate (Replaces: W10111906) |
|
$ 115.09 | |||||
| 38 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 39 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 141.27 | |||||
| 40 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 41 | WPW10350907 | Assembly, Door Switch (Replaces: W10350907) |
|
$ 90.16 | |||||
| 42 | WP8547171 | Pulley, Motor (Replaces: 8547171) |
|
$ 149.66 | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 7.60 | |||||
| 44 | W10044490 | Seal, Front Panel |
|
$ 34.05 | |||||
| 45 | W10391496 | Plug, Front Panel (chrome Shadow) |
|
- | |||||
| 45 | W10337788 | Plug, Front Panel (cherry Metallic) |
|
- | |||||
| 45 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 46 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 8.21 | |||||
| 47 | W10629566 | Riser |
|
- | |||||
| 48 | 3389682 | Spacer, Toe Panel |
|
$ 9.23 | |||||
| 49 | WPW10224768 | Seal-spill Guard (Replaces: W10224768) |
|
$ 75.69 |
