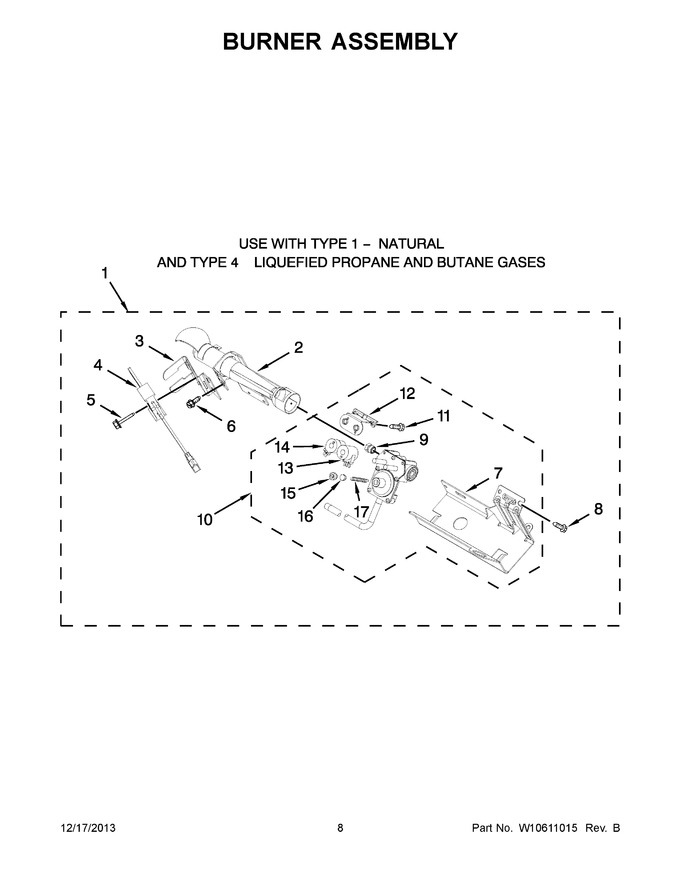

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8557891		Burner Assembly 60 Hz.   (Replaces: 8557891)				$ 373.98
2	WPW10536683		Tube, Burner   (Replaces: W10536683)				$ 178.07
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	W10183823		Bracket, Gas Valve		Appelez-nous	-
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	WP15418		Orifice, Burner (type 1 (natural))   (Replaces: 15418)				$ 37.32
9	15422		Orifice, Burner (type 4) (butane)				$ 3,441.42
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 36.59
10	WP8573071		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No.7).   (Replaces: 8573071)				$ 416.96
11	694421		Screw, Coil		Appelez-nous	-
12	8182790		Bracket, Coil		Appelez-nous	-
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 36.30
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W11581317		Conversion Kit (type (1) To Type (4) Lpg)   (Replaces: 8576846)			Immediately	$ 93.17
