SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Wire Harness And Components


04 - Body


05 - Upper Oven Door


06 - Lower Oven Door

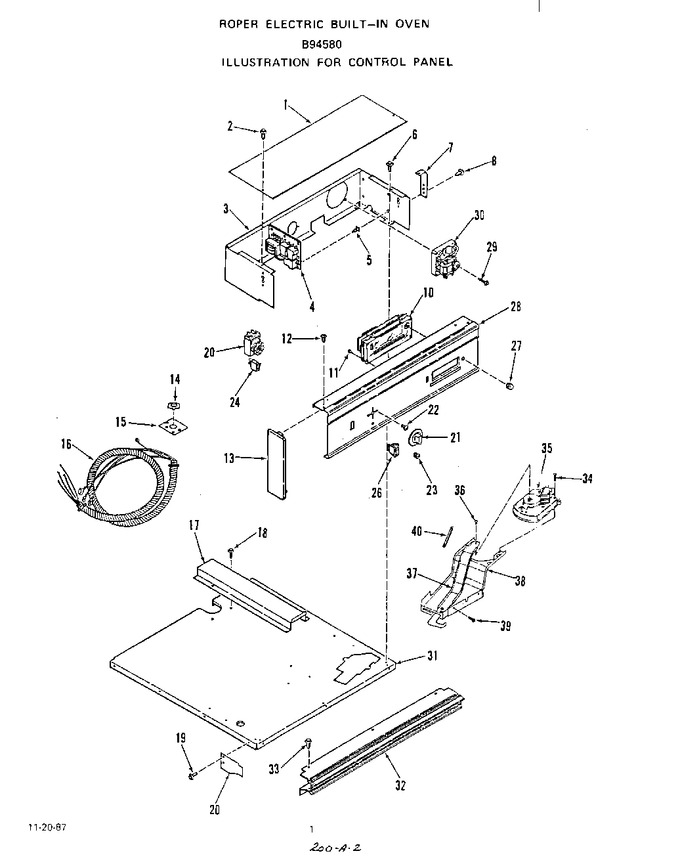

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	337414		Top Cover-housing		Appelez-nous	-
2	327320		Screw 10-16x7/16``		Appelez-nous	-
3	339476		Control Housing		Appelez-nous	-
4	337672		Relay Board		Appelez-nous	-
5	331469		Spacer Pcb		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	336563		Bracket		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
10	338468		Clock/oven Control W/lens		Appelez-nous	-
11	78153		Screw 6-32x5/16``		Appelez-nous	-
12	336529		Screw		Appelez-nous	-
13	336511		Left		Appelez-nous	-
13	336512		Right		Appelez-nous	-
14	110340		Nut		Appelez-nous	-
15	294983		Plate		Appelez-nous	-
16	336305		Harness Conduit Asm.		Appelez-nous	-
17	336780		Wire Cover		Appelez-nous	-
18	327320		Screw 10-16x7/16``		Appelez-nous	-
19	327320		Screw 10-16x7/16``		Appelez-nous	-
20	320938		Thermostat		Appelez-nous	-
21	336288		Thermostat Knob		Appelez-nous	-
22	78565		Screw 8-32x3/16``		Appelez-nous	-
23	331705		Lens-indicator Light		Appelez-nous	-
24	331717		Light Indicator		Appelez-nous	-
25	336275		Heat Shield (lt. Or Rt.)		Appelez-nous	-
26	334649		Switch		Appelez-nous	-
27	334045		Clock Knob		Appelez-nous	-
28	336279		Panel Control		Appelez-nous	-
29	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
30	336560		Fan Asm		Appelez-nous	-
31	337724		Cabinet Top		Appelez-nous	-
32	336245		Trim Control Panel		Appelez-nous	-
33	327320		Screw 10-16x7/16``		Appelez-nous	-
34	103436		Screw 8 - 32 X 3/4``		Appelez-nous	-
35	338249		Lock Motor		Appelez-nous	-
36	232183		Screw 8-32x3/4``		Appelez-nous	-
37	337971		Lock Lever		Appelez-nous	-
38	336556		Door Lock Plate		Appelez-nous	-
39	316849		Screw 10-32x1/4``		Appelez-nous	-
40	337933		Lock Spring		Appelez-nous	-
	339657		Xclock Lens		Appelez-nous	-
