SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Wire Harness And Components

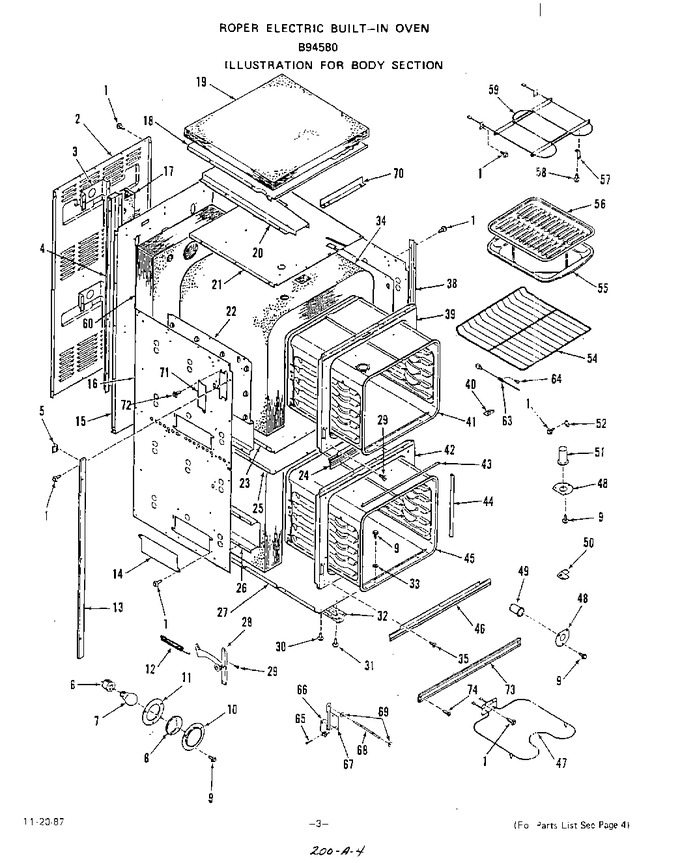

04 - Body


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	336808		Cabinet Back		Appelez-nous	-
3	323630		Oven Light Insulation Retainer (up. & Lo.)		Appelez-nous	-
4	328148		Rear Oven Vent Box		Appelez-nous	-
5	328077		Spacer (6 Req.)		Appelez-nous	-
6	87883		Oven Light Bulb Holder (up. & Lo. Oven)		Appelez-nous	-
7	DA96-01243C		Oven Light Bulb (up. & Lo. Oven)   (Replaces: 111257)				$ 160.00
8	114989		Oven Light Lens (up. Oven)		Appelez-nous	-
9	326974		Screw 10abx1/2``		Appelez-nous	-
10	229372		Oven Light Lens Retainer (up. Oven)		Appelez-nous	-
11	229371		Oven Light Gasket (up. Oven)		Appelez-nous	-
12	328962		Upper Oven		Appelez-nous	-
12	328961		Lower Oven		Appelez-nous	-
13	336248		Side Trim (lt. Or Rt.)		Appelez-nous	-
14	328112		Cover Plate (4 Req.)		Appelez-nous	-
15	336258		Main Back		Appelez-nous	-
16	337827		Cabinet Side-lt. Or Rt.		Appelez-nous	-
17	WP660579		Oven Light Insulation (up. & Lo. Oven)   (Replaces: 311715)				$ 164.26
18	337726		Cabinet Top Insulation Retainer		Appelez-nous	-
19	336572		Insulation-cabinet Top		Appelez-nous	-
20	336779		Vent Box		Appelez-nous	-
21	336578		Insulation Retainer-oven Top		Appelez-nous	-
22	338266		Oven Side Insulation Retainer (lt. Or Rt.)		Appelez-nous	-
23	327966		Bottom Insulation Retainer (up. Oven)		Appelez-nous	-
24	336240		Center Front Trim		Appelez-nous	-
25	327963		Oven Top Insulation Retainer (lo. Oven)		Appelez-nous	-
26	328071		Door Spring Insulation Retainer (lt. Or Rt.)		Appelez-nous	-
27	327948		Cabinet Bottom		Appelez-nous	-
28	337371		Right (2 Req)		Appelez-nous	-
28	337372		Left (2 Req)		Appelez-nous	-
29	336296		Screw		Appelez-nous	-
30	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
31	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
32	338208		Bottom Cabinet Channel (lt. Or Rt.)		Appelez-nous	-
33	021067		Washer		Appelez-nous	-
34	328103		Insulation-oven Top & Sides (1 Piece) (up & Lo. Oven)		Appelez-nous	-
35	336296		Screw		Appelez-nous	-
38	323665		Raceway		Appelez-nous	-
39	338269		Front Frame-up. Oven		Appelez-nous	-
40	304835		Cover-lo. & Up. Oven		Appelez-nous	-
41	336190		Upper Oven Body		Appelez-nous	-
42	338277		Front Frame-lo. Oven		Appelez-nous	-
43	328809		Top Seal-oven Door (lo. Oven)		Appelez-nous	-
44	329204		Side Seal-oven Door (rt. Or Lt.) (lo. Oven)		Appelez-nous	-
45	331647		Lower Oven Body		Appelez-nous	-
46	336243		Lower Trim		Appelez-nous	-
47	328113		Bake Element-up.& Lo. Oven		Appelez-nous	-
48	328303		Clamp-oven Vent		Appelez-nous	-
49	329124		Vent Tube-lower Oven		Appelez-nous	-
50	291123		Retainer, Thermostat Bulb (lo. Oven) 2 Req		Appelez-nous	-
51	WP660579		Vent Tube-upper Oven   (Replaces: 311716)				$ 164.26
52	237762		Cover Plate-thermostat Bulb (2 Req.)		Appelez-nous	-
54	WP330190		Oven Rack (2 Up. Oven & 2 Lo. Oven)   (Replaces: 328135)				$ 44.45
55	331592		Broiler Pan		Appelez-nous	-
56	326297		Broiler Pan Grid		Appelez-nous	-
57	324809		Support-broil Element (2 Req)		Appelez-nous	-
58	327320		Screw 10-16x7/16``		Appelez-nous	-
59	328115		Broil Element (up. Oven)		Appelez-nous	-
60	336286		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
63	12001656		Sensor   (Replaces: 334300)			Immediately	$ 50.14
64	337857		Screw		Appelez-nous	-
65	328956		Screw 4-40x11/16``		Appelez-nous	-
66	337711		Switch		Appelez-nous	-
67	327770		Switch Insulation		Appelez-nous	-
68	337723		Push Rod		Appelez-nous	-
69	335039		Flat Washer		Appelez-nous	-
70	337922		Baffle		Appelez-nous	-
71	337907		Cover Plate		Appelez-nous	-
72	327320		Screw 10-16x7/16``		Appelez-nous	-
73	338119		Cabinet Trim		Appelez-nous	-
74	336297		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
