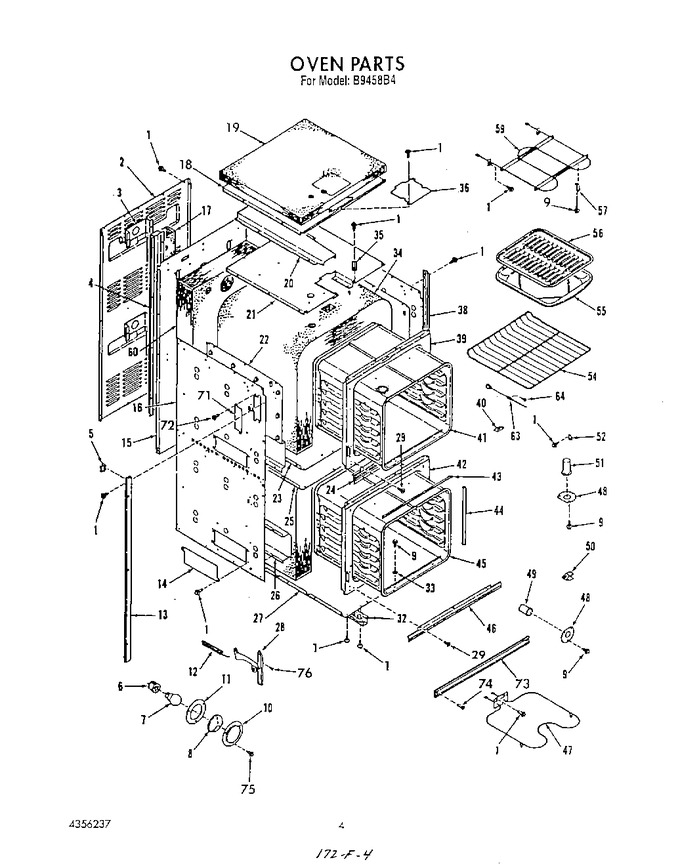

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
2	4337714		Back, Cabinet		Appelez-nous	-
3	4333934		Retainer, Light Insulation, Upper/lower Ovens		Appelez-nous	-
4	4335560		Vent Box, Rear		Appelez-nous	-
5	4335524		Spacer (6)		Appelez-nous	-
6	W10856866		Holder, Light Bulb   (Replaces: 4323560)				$ 6.80
7	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
8	4324415		Light Lens, Upper Oven		Appelez-nous	-
9	WP308685		Screw, No.10 X 1/2   (Replaces: 4323379)			Immediately	$ 7.08
10	4324482		Lens Retainer, Upper Oven		Appelez-nous	-
11	4324481		Seal, Oven Light, Upper Oven		Appelez-nous	-
12	4335885		Spring, Oven Door (lt/rt) (lower Oven)		Appelez-nous	-
12	4335886		Spring, Oven Door (lt/rt) (upper Oven)		Appelez-nous	-
13	4337710		Side Trim (lt/rt)		Appelez-nous	-
14	4335540		Cover Plate (4)		Appelez-nous	-
15	4337714		Back		Appelez-nous	-
16	4338169		Cabinet Side, (lt/rt)		Appelez-nous	-
17	4353890		Insulation, Lamp (upper/lower)		Appelez-nous	-
18	4336890		Retainer, Cabinet Top Insulation		Appelez-nous	-
19	4337815		Insulation, Cabinet Top		Appelez-nous	-
20	4337876		Vent Box		Appelez-nous	-
21	4335464		Retainer, Oven Top Insulation		Appelez-nous	-
22	4338298		Retainer, Oven Side Insulation		Appelez-nous	-
23	4335463		Retainer, Bottom Insulation (upper Oven)		Appelez-nous	-
24	4343064		Trim, Center Front		Appelez-nous	-
25	4335461		Retainer, Oven Top Insulation, (lower Oven)		Appelez-nous	-
26	4338372		Retainer, Door Spring Insulation (lt/rt)		Appelez-nous	-
27	4335458		Cabinet Bottom		Appelez-nous	-
28	4338609		Hinge (right (2))		Appelez-nous	-
28	4338610		Hinge (left (2))		Appelez-nous	-
29	4337728		Screw, Trim		Appelez-nous	-
32	4338286		Channel, Bottom Cabinet (lt/rt)		Appelez-nous	-
33	4323979		Washer		Appelez-nous	-
34	4353887		Insulation, Top & Sides (1 Pc) (upper/lower)		Appelez-nous	-
35	4331687		Bracket (2)		Appelez-nous	-
36	4336895		Lock Cover Plate		Appelez-nous	-
38	4333947		Raceway		Appelez-nous	-
39	4338300		Front Frame (upper Oven)		Appelez-nous	-
40	4329206		Cover		Appelez-nous	-
41	4337686		Oven Body (upper Oven)		Appelez-nous	-
42	4338302		Front Frame (lower Oven)		Appelez-nous	-
43	4335832		Seal, Door Top (lower Oven)		Appelez-nous	-
44	4335978		Seal, Door Sides (lower) Rt/lt		Appelez-nous	-
45	4336613		Oven Body, Lower		Appelez-nous	-
46	4338612		Trim, Bottom		Appelez-nous	-
47	4335541		Bake Element (2)		Appelez-nous	-
48	4335624		Clamp, Oven Vent		Appelez-nous	-
49	4335954		Vent Tube (lower Oven)		Appelez-nous	-
50	4326912		Clip, Thermostat Bulb (2) Lower		Appelez-nous	-
51	4331173		Vent Tube, Upper		Appelez-nous	-
52	4324951		Cover Plate, (2) Thermostat Bulb		Appelez-nous	-
54	4335557		Oven Rack, (3) 2-upper, 1-lower		Appelez-nous	-
55	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
56	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
57	4334358		Support, Broil Element (2)		Appelez-nous	-
59	4335542		Broil Element (upper)		Appelez-nous	-
60	4337724		Insulation, Back & Bottom (1 Pc)		Appelez-nous	-
63	4337170		Sensor		Appelez-nous	-
64	4324445		Screw, No.6 X 3/8		Appelez-nous	-
71	4338202		Cover Plate		Appelez-nous	-
72	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
73	4338255		Cabinet Trim (opt)		Appelez-nous	-
74	4337729		Screw (opt)		Appelez-nous	-
75	4323387		Screw No.10 X 3/4		Appelez-nous	-
76	4337736		Relay		Appelez-nous	-
76	4342975		Main		Appelez-nous	-
76	4337929		Sensor		Appelez-nous	-
76	4336631		Trim Screw		Appelez-nous	-
