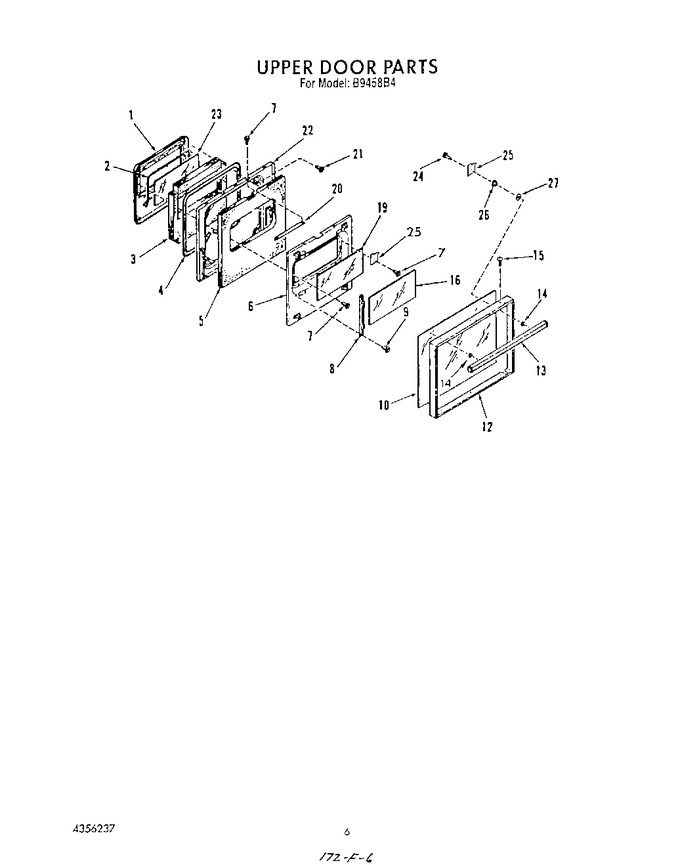

05 - Upper Door


06 - Lower Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338242		Plug, Door Lining		Appelez-nous	-
2	4342634		Seal, Door		Appelez-nous	-
3	4354814		Insulation-plug		Appelez-nous	-
4	4335546		Gasket, Oven Door		Appelez-nous	-
5	4354813		Insulation, Door Lining		Appelez-nous	-
6	4337826		Retainer, Insulation		Appelez-nous	-
7	4323776		Screw, No.10-32 X 17/32		Appelez-nous	-
8	4335518		Retainer, Door Glass (lt/rt)		Appelez-nous	-
9	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
10	4337692		Door Glass, Outer		Appelez-nous	-
12	4337694		Door Frame		Appelez-nous	-
13	4337687		Handle		Appelez-nous	-
14	4323997		Spacer, Handle		Appelez-nous	-
15	4324614		Screw No.6-20x5/16		Appelez-nous	-
16	4335509		Glass, Intermediate		Appelez-nous	-
19	4335508		Glass, Center		Appelez-nous	-
20	4331496		Support, Lining		Appelez-nous	-
21	W10850756		Screw No.10-32x3/8   (Replaces: 4323777)				$ 7.38
22	4338084		Lining		Appelez-nous	-
23	4343174		Glass, Inner		Appelez-nous	-
24	4342665		Screw, No.10-32 X 3/4		Appelez-nous	-
25	4342666		Retainer, Glass		Appelez-nous	-
26	4336869		Spacer, Glass		Appelez-nous	-
27	4336868		Washer, Fiber		Appelez-nous	-
