SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Upper Oven


4 - Lower Oven


5 - Upper Door


6 - Lower Door


7 - Door Lock

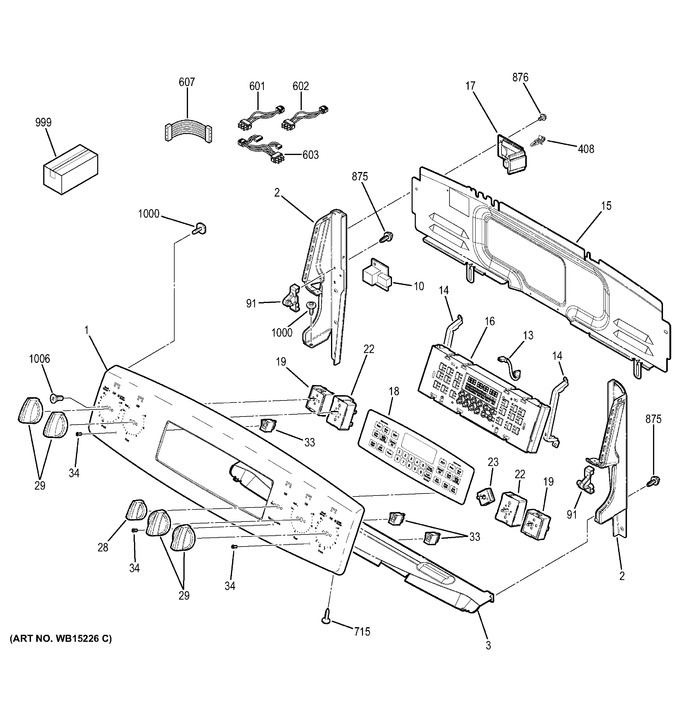

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36X20024		Trim Cntrl Asm		Appelez-nous	-
1	229C6305P001		Label Wire Diagram		Appelez-nous	-
2	WB07X20043		Plate End Rt (gy)		Appelez-nous	-
2	WB07X20042		Plate End Lt (gy)		Appelez-nous	-
3	WB02X20711		Shield Heat Bkgd		Appelez-nous	-
10	WB27T11453		Board Rj45 Connector		Appelez-nous	-
13	WB18T10506		Jumper		Appelez-nous	-
14	WB34X20004		Bracket Control Rt		Appelez-nous	-
14	WB34X20003		Bracket Control Lt		Appelez-nous	-
15	WB34X20932		Cover Control		Appelez-nous	-
16	WB27T11491		Control Board (t012-tac)		Appelez-nous	-
17	WB27X20933		Housing Rj45 Asm		Appelez-nous	-
18	WB27X20023		Faceplate Graphics (dg)		Appelez-nous	-
19	WB24T10153		Switch Infinite Control		Appelez-nous	-
22	WG02F00292		Control Infinite Switch   (Replaces: WB24T10029)			Immediately	$ 60.36
23	WB24T10181		Switch Rotary		Appelez-nous	-
28	WS01L12267		Knob Asm   (Replaces: WB03T10336)				$ 55.83
29	WS01L12266		Knob Asm   (Replaces: WB03T10337)			Immediately	$ 63.90
34	WB25T10103		Lens		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
408	WB02T10477		Pcb Standoff		Appelez-nous	-
601	WB18X20001		Harness Wire Infinite		Appelez-nous	-
602	WB18T10497		Harness Wire Infinite		Appelez-nous	-
603	WB18X21396		Harness Wire Ui Com		Appelez-nous	-
607	WB18X20006		Harness Wire Cat Module		Appelez-nous	-
715	WD2X432		Screw 8-18 X 5/16 Bk		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
876	WB1X500D		Screw-pkg 12		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	31-10816		Pm Instructions Install		Appelez-nous	-
999	49-80597		Manual U&c Tip Sheet		Appelez-nous	-
999	WB64X93		Glass Cleaner		Appelez-nous	-
999	31-17048		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	31-10661		Instruction Install		Appelez-nous	-
999	49-80633		Pm Owners Manual		Appelez-nous	-
1000	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
1006	WS01A01257		Screw 8-32 Tpt Flr 215 S   (Replaces: WB01T10020)				$ 3.57

    View Diagram in Separate Window       Print Part List
