View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

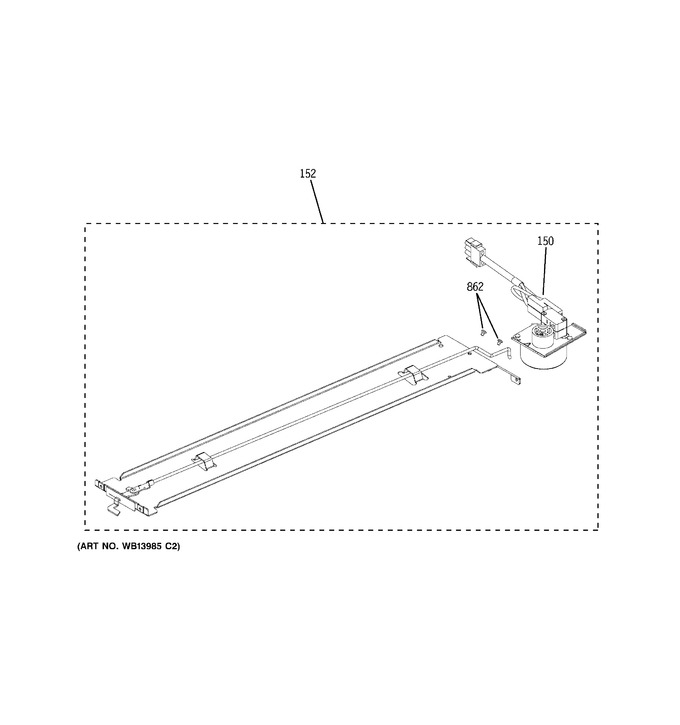

| 150 | WB14T10088 | Latch Asm |
|
- | |||||
| 152 | WB10X21399 | Latch & Harness Asm |
|
- | |||||
| 862 | WB1X1178 | Screw |
|
- | |||||
| WG02L06609 | Rangetop Glass Asm (dg) |
|
$ 383.50 | ||||||
| WS01F01177 | Element Radiant 9" Dual (Replaces: WG02F04091) |
|
Immediately | $ 103.24 | |||||
| WS01F01164 | Element Haliant 12" Dual (Replaces: WG02F04089) |
|
Immediately | $ 108.08 | |||||
| WG02F02821 | Switch Spdt High Amp |
|
Immediately | $ 27.16 | |||||
| WG02F02750 | Block Terminal Asm |
|
Immediately | $ 143.06 | |||||
| WG02F04788 | Light Indicator |
|
Immediately | $ 14.29 | |||||
| WS01F01164 | Element 12" Haliante |
|
Immediately | $ 108.08 | |||||
| WG03F00005 | Bulb 40w S/clean (sp10) |
|
$ 2.22 | ||||||
| WG02L06073 | Light Indicator Pilot |
|
$ 18.63 | ||||||
| WG02L04749 | Panel Asm Bonded Lwr(ss) |
|
$ 498.56 | ||||||
| WG02F13130 | Control Board (to12-tac) (Replaces: WG02F06865) |
|
$ 324.78 | ||||||
| WG02F05719 | Power Cord |
|
$ 128.16 | ||||||
| WS01F01598 | Switch Control Infinite |
|
Immediately | $ 66.47 | |||||
| WS01F02431 | Oven Sensor (Replaces: WG02F04474) |
|
Immediately | $ 27.18 |
