SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

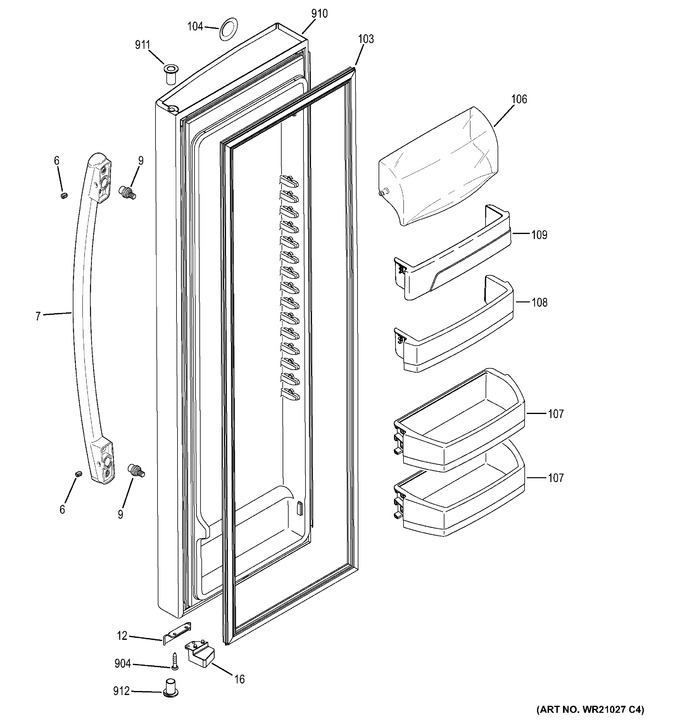

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	200D7355G084		Board Main Combined Hmi		Appelez-nous	-
7	WR12X20441		Arc Handle Asm		Appelez-nous	-
7	8911200P460		Scr 6-19 Tt Pnt15 1/4 S		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
107	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
108	WR71X10858		Shelf Module Fixed Ff		Appelez-nous	-
109	WR71X11034		Fixed Shelf Ff		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X12851		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
